Specifications of FAG Bearing 294/710-E1-XL-MB

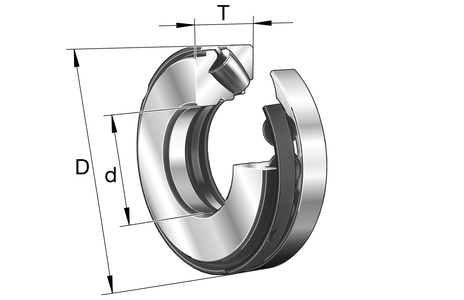

Main Dimensions & Performance Data
Ca | 2.1E7 N | Basic dynamic load rating, axial |
C0a | 7.6E7 N | Basic static load rating, axial |
d | 710 mm | Bore diameter |
Cua | 6200000 N | Fatigue load limit, axial |
nG | 475 1/min | Limiting speed |
D | 1220 mm | Outside diameter |
nδr | 220 1/min | Reference speed |
T | 308 mm | Section height |
Dimensions
D1 | 917 mm | Bore diameter Housing washer |
A | 415 mm | Distance of the center point |
T2 | 117 mm | Height of shaft washer |
T1 | 149 mm | Height of the housing washer |
T3 | 202 mm | Height of the shaft washer |
T4 | 298 mm | Height of shaft washer, inc. lip ring |
rmin | 15 mm | Minimum chamfer dimension |
d1 | 1120 mm | Rip diameter shaft washer |
Mounting dimensions
Da max | 1073 mm | Maximum diameter of housing shoulder |
db max | 762 mm | Maximum distance sleeve |
ra max | 12 mm | Maximum recess radius |
Db min | 1250 mm | Minimum bore diameter housing |
da min | 960 mm | Minimum diameter shaft shoulder |
Temperature range
Tmax | 200 ℃ | Operating temperature max. |
Tmin | -30 ℃ | Operating temperature min. |
