Specifications of FAG Bearing 53312

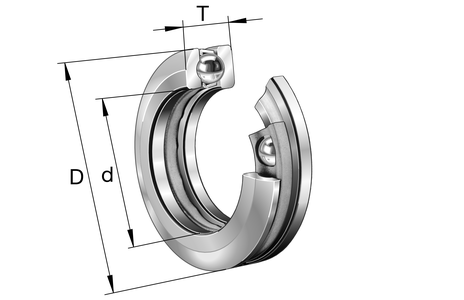

Main Dimensions & Performance Data
Ca | 101000 N | Basic dynamic load rating, axial |
C0a | 207000 N | Basic static load rating, axial |
d | 60 mm | Bore diameter |
Cua | 9500 N | Fatigue load limit, axial |
T | 38.3 mm | Height |
nG | 3150 1/min | Limiting speed |
D | 110 mm | Outside diameter |
nδr | 5700 1/min | Reference speed |
Dimensions
D1 | 62 mm | Bore diameter Housing washer |
A | 41 mm | Distance of the center point |
T1 | 42 mm | Height with seat washer |
d1 | 110 mm | Lip diameter shaft washer |
rmin | 1.1 mm | Minimum chamfer dimension |
R | 90 mm | Radius spherical housing washer |
Mounting dimensions
Da max | 85 mm | Maximum diameter of housing shoulder |
ra max | 1 mm | Maximum recess radius |
da min | 90 mm | Minimum diameter shaft shoulder |
Calculation factors
A | 0.28 | Minimum load factor |
Additional information
Temperature range
Tmax | 150 ℃ | Operating temperature max. |
Tmin | -30 ℃ | Operating temperature min. |
