Specifications of FAG Bearing HCB7000-C-T-P4S-UL
FAG super precision Spindle bearing HCB7000-C-T-P4S-UL is a single row angular contact ball bearing with a contact angle of 15°. It has a universal design with a split inner or outer ring.

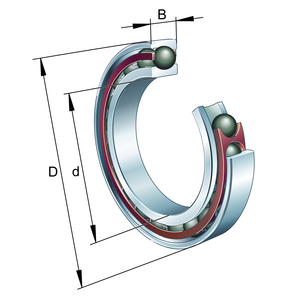

Size: The bearing has a bore diameter of 10 mm, an outside diameter of 26 mm, and a width of 8 mm.
Material: This bearing is made of high quality chrome steel for durability and long service life. Structure: This bearing is a single row angular contact ball bearing with a contact angle of 15°. It has a universal design with a split inner or outer ring.
Usage: This bearing is designed for high speed and precision applications such as precision spindles, robot joints, and indexing applications.
Advantages: This bearing has a low friction coefficient and is suitable for high speed and precision applications. It also has a split inner or outer ring, which makes it easier to install and mount.
Disadvantages: This bearing can be expensive and can require regular maintenance.
Size: The bearing has a bore diameter of 10 mm, an outside diameter of 26 mm, and a width of 8 mm.
Material: This bearing is made of high quality chrome steel for durability and long service life. Structure: This bearing is a single row angular contact ball bearing with a contact angle of 15°. It has a universal design with a split inner or outer ring.
Usage: This bearing is designed for high speed and precision applications such as precision spindles, robot joints, and indexing applications.
Advantages: This bearing has a low friction coefficient and is suitable for high speed and precision applications. It also has a split inner or outer ring, which makes it easier to install and mount.
Disadvantages: This bearing can be expensive and can require regular maintenance.
Additional information
| ca H | 26.9 N/μm | Axial rigidity heavy |
| ca L | 9.9 N/μm | Axial rigidity light |
| ca M | 18.5 N/μm | Axial rigidity medium |
| KaE H | 248 N | Lift-off force heavy |
| KaE L | 21 N | Lift-off force light |
| KaE M | 104 N | Lift-off force medium |
| FV H | 74 N | Preload force heavy |
| FV L | 7 N | Preload force light |
| FV M | 33 N | Preload force medium |
Main Dimensions & Performance Data
| Cr | 4150 N | Basic dynamic load rating, radial |
| C0r | 1400 N | Basic static load rating, radial |
| d | 10 mm | Bore diameter |
| Cur | 113 N | Fatigue load limit, radial |
| nG Grease | 95000 1/min | Limiting speed for grease lubrication |
| nG Oil | 140000 1/min | Limiting speed for oil lubrication |
| D | 26 mm | Outside diameter |
| B | 8 mm | Width |
Dimensions
| α | 15 ° | Contact-angle |
| r1 min | 0.3 mm | Minimum chamfer dimension |
| rmin | 0.3 mm | Minimum chamfer dimension |
Mounting dimensions
| da | h12 | Diameter shaft shoulder clearance |
| da | 14 mm | Diameter shaft shoulder |
| a | 6.4 mm | Distance between the apexes of the pressure cones |
| Etk max | 16.8 mm | Maximum diameter injection pitch |
| Etk1 max | 16.8 mm | Maximum diameter injection pitch |
| ra max | 0.3 mm | Maximum recess radius |
| ra1 max | 0.1 mm | Maximum recess radius |
| Etk min | 15.7 mm | Minimum diameter injection pitch |
| Etk1 min | 15.7 mm | Minimum diameter injection pitch |
| Da | H12 | Shoulder diameter outer ring clearance |
| Da | 22 mm | Shoulder diameter outer ring |
Temperature range
| Tmax | 100 ℃ | Operating temperature max. |
| Tmin | -30 ℃ | Operating temperature min. |
