Specifications of FAG Bearing NU1011-XL-M1

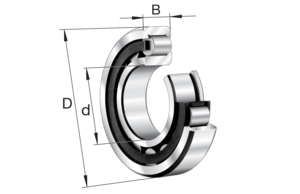

Dimensions
s | 2.4 mm | Axial displacement |
D1 min | 77.3 mm | Minimum rib diameter outer ring |
r1 min | 1 mm | Minimum chamfer dimension |
rmin | 1.1 mm | Minimum chamfer dimension |
F | 64.5 mm | Raceway diameter inner ring |
E | 80.5 mm | Raceway diameter outer ring |
Main Dimensions & Performance Data
Cr | 49500 N | Basic dynamic load rating, radial |
C0r | 50000 N | Basic static load rating, radial |
d | 55 mm | Bore diameter |
Cur | 6800 N | Fatigue load limit, radial |
nG | 15600 1/min | Limiting speed |
D | 90 mm | Outside diameter |
nδr | 6900 1/min | Reference speed |
B | 18 mm | Width |
Mounting dimensions
Da max | 84 mm | Maximum diameter of housing shoulder |
da max | 63 mm | Maximum diameter of shaft shoulder |
ra max | 1.1 mm | Maximum recess radius |
ra1 max | 1 mm | Maximum recess radius |
da min | 60 mm | Minimum diameter shaft shoulder |
db min | 66 mm | Minimum shaft shoulder |
Temperature range
Tmax | 150 ℃ | Operating temperature max. |
Tmin | -30 ℃ | Operating temperature min. |
