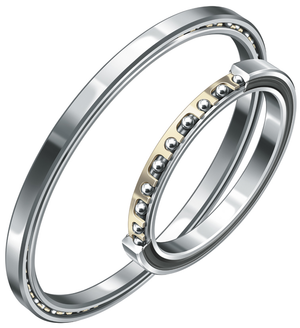

Specifications of INA Bearing CSCA025
Main Dimensions & Performance Data
Cr | 3600 N | Basic dynamic load rating, radial |
C0r | 3250 N | Basic static load rating, radial |
d | 63.5 mm | Bore diameter |
d | 2.5 inch | Bore diameter bearing (Inch) |
nG | 8500 1/min | Limiting speed |
D | 76.2 mm | Outside diameter |
B | 6.35 mm | Width |
Dimensions
rmin | 0.6 mm | Minimum chamfer dimension |
d1 | 68.2 mm | Shoulder diameter inner ring |
D1 | 71.5 mm | Shoulder diameter outer ring |
Temperature range
Tmax | 120 u00b0C | Operating temperature max. |
Tmin | -30 u00b0C | Operating temperature min. |
