INA Bearing CSXU090-2RS

Product description of INA Bearing CSXU090-2RS

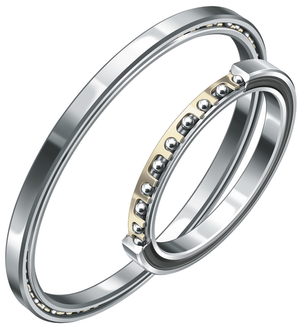

INA Bearing CSXU090-2RS Thin-Section Bearings, it belongs to INA Bearing > Ball Bearings > Thin-Section Bearings Thin Section bearing type-A Angular contact bearing differs from Thin Section bearing type-C bearing in that the type-A bearing has sufficient radial clearance to form a sufficient contact angle to withstand the axial load. The contact angle of a standard bearing is 30°.

Because of its unidirectional bearing capacity, it needs to be installed symmetrically paired with other bearings to set and ensure of sufficient contact angle while the bearing minimizes its axial movement when bearing alternating axial loads.

INA Bearing CSXU090-2RS Thin-section bearings are high-precision products with very little running noise and a high load-carrying capacity. These bearings are available in three different designs with extremely small, predominantly square cross-sections. Within each series, the cross-section remains constant even in the case of larger shaft and housing bore diameters. The bearings are therefore also described as constant section (CS) bearings. This feature distinguishes thin section bearings from the conventional bearings that are described in standardized ISO series. In this way, a larger cross-section can be selected in a graduated manner and, thus, a bearing with high load-carrying capacity can be used without the need to increase the shaft diameter. Thin-section bearings can be used to achieve extremely light and compact designs.

INA Bearing CSXU090-2RS Thin-section bearings are available as deep groove ball bearings, four-point contact bearings and as angular contact ball bearings. Each of these designs is available in various series. The series correspond to the cross-section sizes. The balls are matched to the series. The inch family of Reali-Slim thin section bearings includes seven open series (Figure 1-2) and five sealed series (Figure 1-3), ranging in bore diameters from 1.000 inch to 40.000 inches. Series range from .187 x .187 inch to 1.000 x 1.000 inch in cross-section. Open bearings are available from stock in three configurations (Types A, C & X). Stock sealed bearings are available in Types C & X only.

INA Bearing CSXU090-2RS Thin-Section Bearings,We can provide internal fit up, lubricants, separators and other features to meet the most demanding specifications.To obtain corrosion resistance consider using the Kay-don stainless steel Reali-Slim or Endura-Slim series of bearings.Endurakote plating provides corrosion protection equal to or better than a full AISI 440C stainless steel bearing and can be supplied with very quick delivery.

Additional product line variants include Reali-Slim MM metric series bearings (Figure 1-4), Ultra- Slim bearings (Figure 1-1), Reali-Slim TT series turntable bearings, BB metric ball bearings (all found in Section 2), Bearings for Demanding Applications, and KT thin section taper bearings (Section б).

Within these families, you can generally choose between open bearings for applications where bearings will not be exposed to damaging particulates and sealed bearings for applications where bearings need to be kept clean and well-lubricated.
