Specifications of INA Bearing K15X18X17-TV

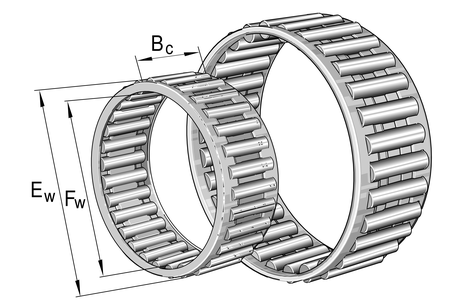

Main Dimensions & Performance Data
Cr | 8000 N | Basic dynamic load rating, radial |
C0r | 12100 N | Basic static load rating, radial |
Cur | 1760 N | Fatigue load limit, radial |
Fw | 15 mm | Inner diameter of needle roller complement |
nG | 24600 1/min | Limiting speed |
Ew | 18 mm | Outside diameter of needle roller complement |
nu03d1r | 17700 1/min | Reference speed |
Bc | 17 mm | Width |
Temperature range
Tmax | 120 u00b0C | Operating temperature max. |
Tmin | -20 u00b0C | Operating temperature min. |
