KOYO Bearing NNU4984

d=420 mm, D=560 mm, B=140 mm, Mass=96.7 kg
Material: Bearing steels
In Stock:
Photo may not represent actual item. See the technical specification for details.

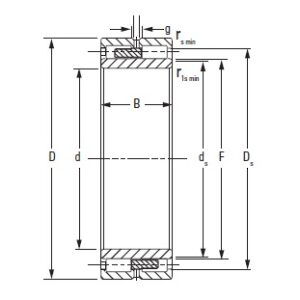

Specifications of KOYO Bearing NNU4984

KOYO Bearing NNU4984

Specifications
(Boundary dimensions …etc)

d
420 mm
D
560 mm
B
140 mm
r(min.)
4 mm
Fw
460 mm
Ew
– mm
Basic load ratings : Cr
1670 kN
Basic load ratings : C0r
4290 kN
Fatigue load limit : Cu
413 kN
Limiting speeds(Grease lub.)
730 min-1
Limiting speeds(Oil lub.)
880 min-1

Mounting dimensions

da(min.)
436 mm
da(max.)
457 mm
db(min.)
465 mm
Da(max.)
544 mm
da(min.)
– mm
ra(max.)
3 mm

Refer.

(Refer.)Mass
96.7 kg

Product description of KOYO Bearing NNU4984

KOYO Bearing NNU4984, Cylindrical roller bearings Single-row NNU,Cylindrical roller bearings have line contact between the rollers and raceway, therefore radial load capability is high, making this bearing superior in regards to its ability to withstand heavy loads and impact loads. Moreover, mounting and removing is easy due to the inner ring and outer ring being separable. And you may also like related type KOYO Bearing NNU4988.

The utility model relates to a bearing, in particular to a single-row cylindrical roller bearing which comprises a single-row outer ring and a single-row inner ring. A plurality of rollers are positioned between the inner ring and the outer ring, retainers are positioned between the rollers, the outer ring is provided with double flanges, and the inner ring is provided with a single flange. One end of the inner ring, which is not provided with a flange, is provided with a flat check ring. Practical application shows that when the single-row cylindrical roller bearing is applied to a sludge pump, the service life of the single-row cylindrical roller bearing is several times longer that an original 62938 bearing. Thus, auxiliary time for replacing the bearing is greatly reduced, cost of spare parts is saved, and production requirements of customers are met.

KOYO Bearing NNU4984, Cylindrical roller bearings Single-row NNU, Cylindrical roller bearings feature high radial load capacity because the roller and raceway are in linear contact. These bearings are suitable for applications that involve heavy radial and impact loading. They are also appropriate or high-speed applications in that they can be machined very accurately due to their structure. Having a separable inner ring or outer ring, these bearings can be mounted and dismounted easily.

KOYO Bearing NNU4984, Cylindrical roller bearings Single-row NNU, The utility model provides a single-row cylindrical roller bearing with a novel holder. The single-row cylindrical roller bearing comprises an inner ring, cylindrical rollers, the holder and an outer ring, and is characterized in that the holder is arranged between the outer ring and the inner ring, and the cylindrical rollers are inset in the holder; the holder is made from high-performance engineering plastic such as a PEEK (polyester-ether-ketone) resin, and is internally uniformly provided with a plurality of isolation pillars, the section of the holder is of an I shape, the middle parts of the isolation pillars protrude outward, and each cylindrical roller is inset between each two adjacent isolation pillars. The single-row cylindrical roller bearing provided by the utility model has the advantages that the heat resisting property, the intensity, the elasticity, the creep property, the fatigue property and other properties are excellent; meanwhile, the two ends of the holder are of I-shaped structures, and thus a dust-proof property of the bearing is increased.

We are looking for partners and friends,Not only business!

if you need more details,feel free to contact us, e-mail us at [email protected]
