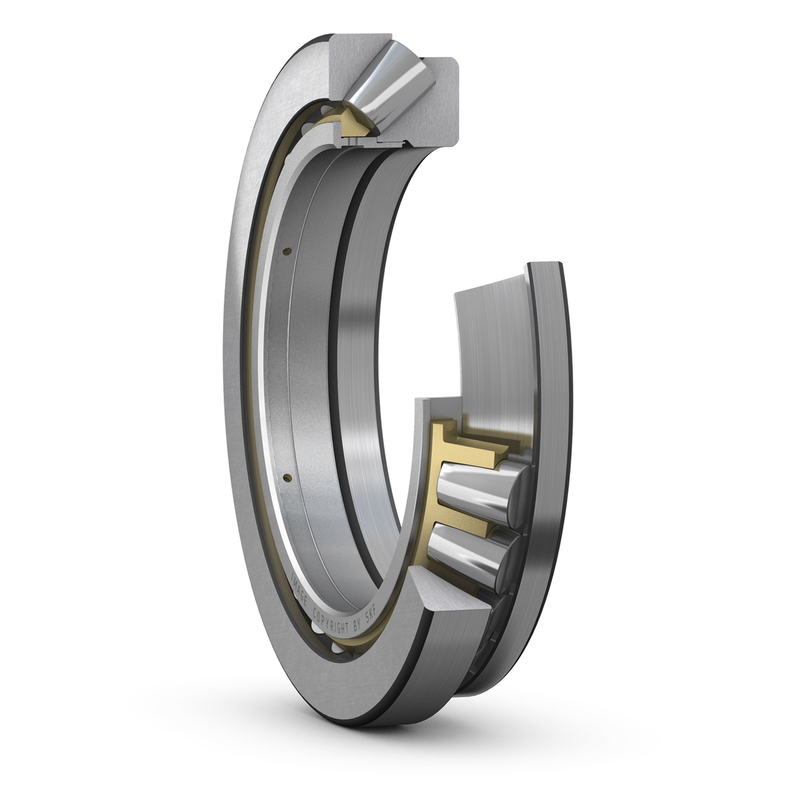

SKF Bearing 294/630 EM

Product description of SKF Bearing 294/630 EM

SKF Bearing 294/630 EM, it belongs to SKF Bearing > Rolling bearings > Roller bearings > Spherical roller thrust bearings. SKF spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers,and we have related type you may also like SKF Bearing 294/670 EM.

Basic design bearings, SKF Bearing 294/630 EM, SKF Spherical roller thrust bearings depending on their series and size, SKF spherical roller thrust bearings are manufactured to two basic designs. Their cage forms a non-separable unit with the shaft washer and rollers.

Bearings with no designation suffix
example: 29272
are fitted with a machined brass prong-type cage as standard.
E design bearings
are identified by the designation suffix E
have larger rollers and an optimized internal design for increased load carrying capacity
are fitted with one of the following cages, depending on bearing size:
size ≤ 68 → stamped steel window-type cage.
size ≥ 72 → machined metal prong-type cage.
SKF Bearing 294/630 EM,Spherical roller thrust bearings are extremely well suited for heavy-duty applications, with axial loads or combined axial and radial loads.They are self- aligning and can accommodate low as well as high speeds. Due to their design,various degrees of stiffness can be arranged.Versatility is a characteristic of spherical roller thrust bearings as they can contribute to space saving and cost- effective designs.The following pages provide more detailed explanations about this bearing type and how it can be used.
Where spherical roller thrust bearings are superior
By design, spherical roller thrust bearings are the only roller thrust bearings that can accommodate radial loads in addition to axial loads. This makes spherical roller thrust bearings an outstanding solution in applications that have to accommodate very heavy axial loads in combination with radial loads. This ability to accommodate combined loads enables economical, space saving designs that can also provide a high degree of stiffness under heavy load conditions. In addition to these unique benefits, spherical roller thrust bearings are also the only roller thrust bearings SKF Bearing 294/630 EM,that can accommodate misalignment-and shaft deflections.
Due to the contact angle in spherical roller thrust bearings, they can successfully replace tapered roller bearings in a number of applications.
