Specifications of SKF Bearing 30232
| Dimension series | 4GB |

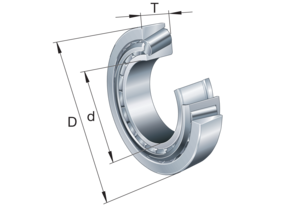

Dimensions
| d | 160.0mm | Bore diameter |
| D | 290.0mm | Outside diameter |
| T | 52.0mm | Total width |
| d1 | 215.57mm | Shoulder diameter of inner ring |
| B | 48.0mm | Width of inner ring |
| C | 40.0mm | Width of outer ring |
| r1,2 | 4.0mm | Chamfer dimension of inner ring |
| r3,4 | 3.0mm | Chamfer dimension of outer ring |
| a | 53.88mm | Distance side face to pressure point |
Abutment dimensions
| da | 190.0mm | Diameter of shaft abutment |
| db | 177.0mm | Diameter of shaft abutment |
| Da | 252.0mm | Diameter of housing abutment |
| Da | 276.0mm | Diameter of housing abutment |
| Db | 269.0mm | Diameter of housing abutment |
| Ca | 7.0mm | Minimum width of space required in housing on large side face |
| Cb | 12.0mm | Minimum width of space required in housing on small side face |
| ra | 4.0mm | Radius of shaft fillet |
| rb | 3.0mm | Radius of housing fillet |
Calculation data
| Basic dynamic load rating | C | 566.0kN |
| Basic static load rating | C0 | 735.0kN |
| Fatigue load limit | Pu | 72.0kN |
| Reference speed | 1600.0r/min | |
| Limiting speed | 2200.0r/min | |
| Limiting value | e | 0.43 |
| Axial load factor | Y | 1.4 |
| Axial load factor | Y0 | 0.8 |
Mass
| Mass | 13.2kg |
