Specifications of SKF Bearing 30324
| Dimension series | 2GB |

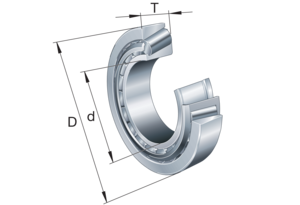

Dimensions
| d | 120.0mm | Bore diameter |
| D | 260.0mm | Outside diameter |
| T | 59.5mm | Total width |
| d1 | 178.98mm | Shoulder diameter of inner ring |
| B | 55.0mm | Width of inner ring |
| C | 46.0mm | Width of outer ring |
| r1,2 | 4.0mm | Chamfer dimension of inner ring |
| r3,4 | 3.0mm | Chamfer dimension of outer ring |
| a | 47.2mm | Distance side face to pressure point |
Abutment dimensions
| da | 153.0mm | Diameter of shaft abutment |
| db | 136.5mm | Diameter of shaft abutment |
| Da | 221.0mm | Diameter of housing abutment |
| Da | 246.5mm | Diameter of housing abutment |
| Db | 237.0mm | Diameter of housing abutment |
| Ca | 8.0mm | Minimum width of space required in housing on large side face |
| Cb | 13.5mm | Minimum width of space required in housing on small side face |
| ra | 4.0mm | Radius of shaft fillet |
| rb | 3.0mm | Radius of housing fillet |
Calculation data
| Basic dynamic load rating | C | 601.0kN |
| Basic static load rating | C0 | 710.0kN |
| Fatigue load limit | Pu | 73.5kN |
| Reference speed | 2000.0r/min | |
| Limiting speed | 2600.0r/min | |
| Limiting value | e | 0.35 |
| Axial load factor | Y | 1.7 |
| Axial load factor | Y0 | 0.9 |
Mass
| Mass | 13.7kg |
