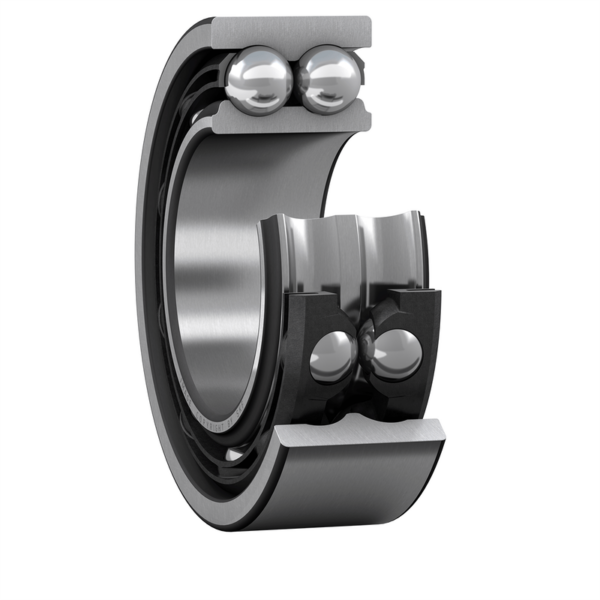

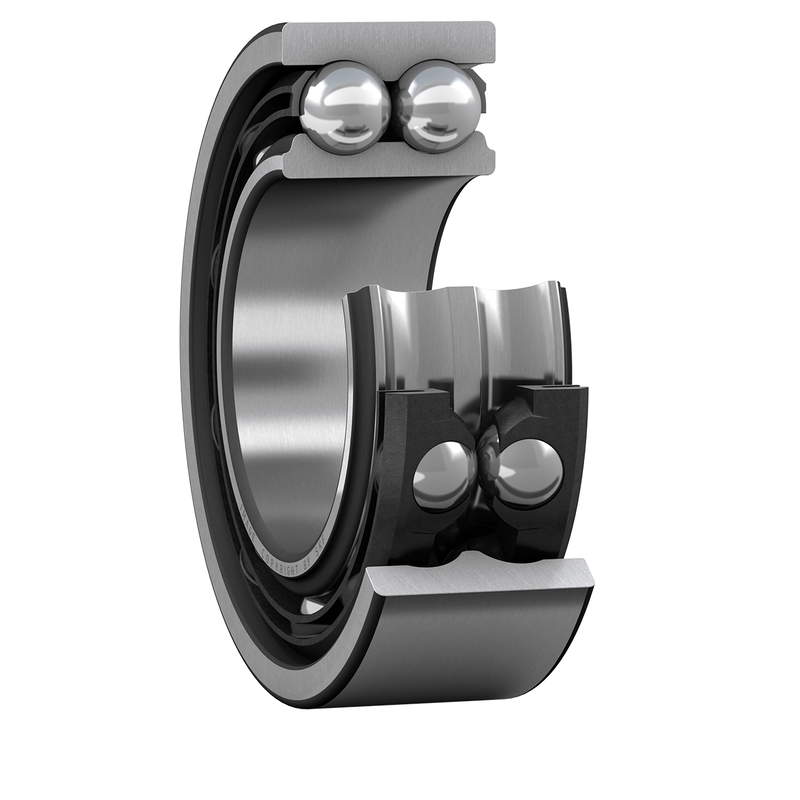

Specifications of SKF Bearing 3202 ATN9
Dimensions
d | 15.0mm | Bore diameter |
D | 35.0mm | Outside diameter |
B | 15.9mm | Width |
d2 | 20.2mm | Recess diameter inner ring shoulder |
D2 | 30.7mm | Recess diameter outer ring shoulder |
r1,2 | 0.6mm | Chamfer dimension inner ring |
a | 21.0mm | Distance pressure point(s) |
Abutment dimensions
da | 19.4mm | Abutment diameter shaft |
Da | 30.6mm | Abutment diameter housing |
ra | 0.6mm | Fillet radius |
Calculation data
Basic dynamic load rating | C | 11.2kN |
Basic static load rating | C0 | 6.8kN |
Fatigue load limit | Pu | 0.285kN |
Reference speed | 22000.0r/min | |
Limiting speed | 18000.0r/min | |
Calculation factor | kr | 0.06 |
Calculation factor | e | 0.8 |
Calculation factor | X | 0.63 |
Calculation factor | Y0 | 0.66 |
Calculation factor | Y1 | 0.78 |
Calculation factor | Y2 | 1.24 |
Mass
Mass bearing | 0.066kg |
