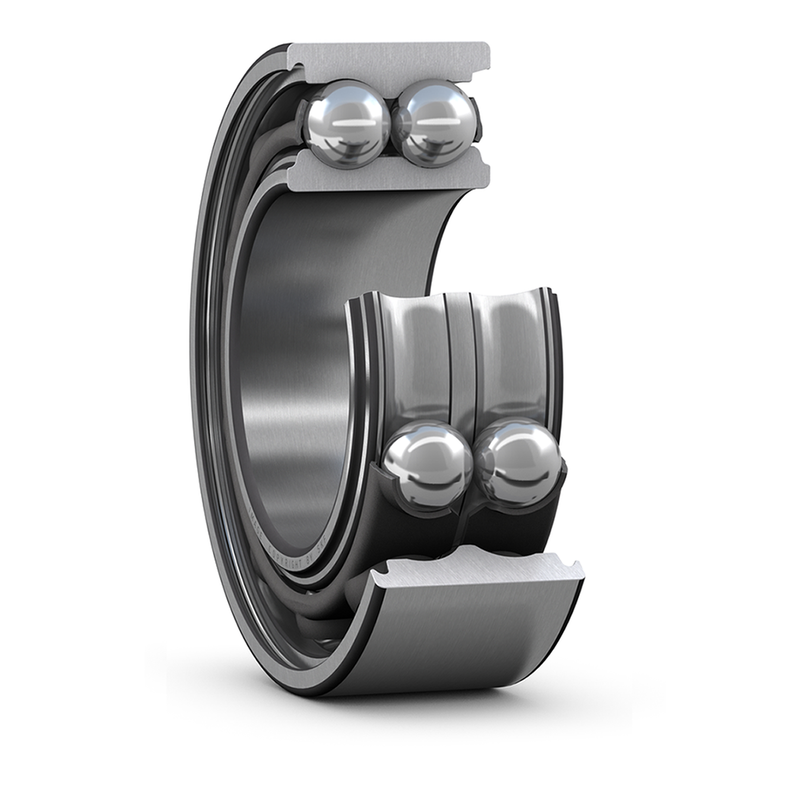

Specifications of SKF Bearing 3317 A
Dimensions
d | 85.0mm | Bore diameter |
D | 180.0mm | Outside diameter |
B | 73.0mm | Width |
d1 | 116.36mm | Shoulder diameter inner ring |
D1 | 152.34mm | Shoulder diameter outer ring |
r1,2 | 3.0mm | Chamfer dimension inner ring |
a | 107.0mm | Distance pressure point(s) |
Abutment dimensions
da | 99.0mm | Abutment diameter shaft |
Da | 166.0mm | Abutment diameter housing |
ra | 2.5mm | Fillet radius |
Calculation data
Basic dynamic load rating | C | 208.0kN |
Basic static load rating | C0 | 176.0kN |
Fatigue load limit | Pu | 6.55kN |
Reference speed | 4000.0r/min | |
Limiting speed | 3600.0r/min | |
Calculation factor | kr | 0.07 |
Calculation factor | e | 0.8 |
Calculation factor | X | 0.63 |
Calculation factor | Y0 | 0.66 |
Calculation factor | Y1 | 0.78 |
Calculation factor | Y2 | 1.24 |
Mass
Mass bearing | 8.3kg |
