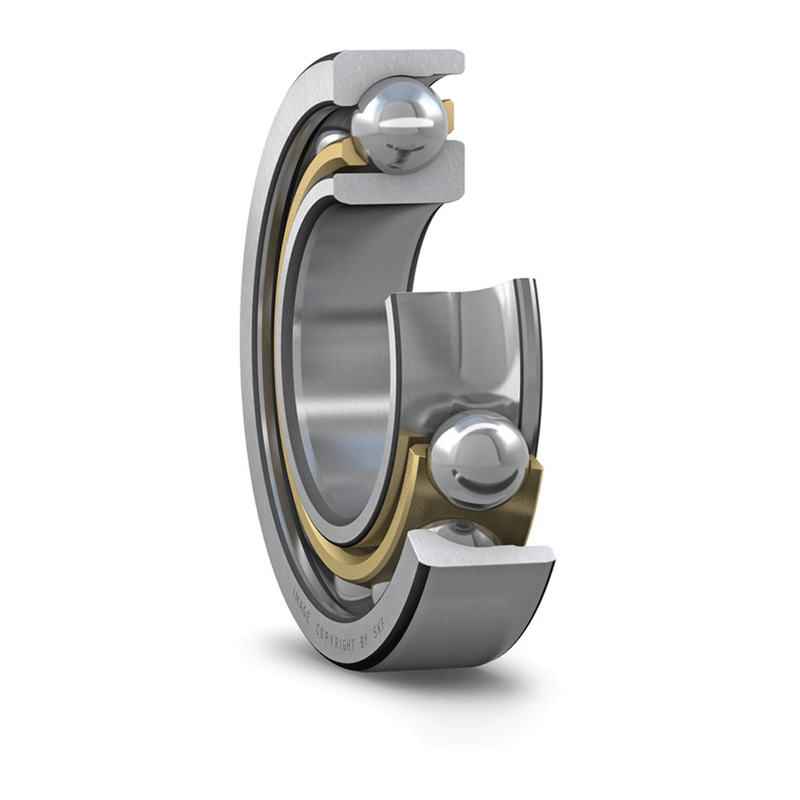

Specifications of SKF Bearing 718/710 ACMB
Dimensions
d | 710.0mm | Bore diameter |
D | 870.0mm | Outside diameter |
B | 74.0mm | Width |
d1 | 763.8mm | Shoulder diameter of inner ring (large side face) |
D1 | 819.6mm | Shoulder diameter of outer ring (large side face) |
a | 221.0mm | Distance side face to pressure point |
r1,2 | 4.0mm | Chamfer dimension |
r3,4 | 1.5mm | Chamfer dimension |
Abutment dimensions
da | 725.0mm | Diameter of shaft abutment |
Da | 855.0mm | Abutment diameter housing |
Db | 863.0mm | Diameter of housing abutment |
ra | 3.0mm | Radius of fillet |
rb | 1.5mm | Radius of fillet |
Calculation data
Basic dynamic load rating | C | 605.0kN |
Basic static load rating | C0 | 1630.0kN |
Fatigue load limit | Pu | 24.5kN |
Reference speed | 630.0r/min | |
Minimum axial load factor | A | 12.1 |
Minimum radial load factor | kr | 0.08 |
Limiting value | e | 0.68 |
Mass
Mass | 92.4kg |
