SKF Bearing 7408 BCBM

M: Machined brass cage, rolling element centred
CB: Normal axial internal clearance (set of two matched bearings arranged back-to-back or face-to-face)
d=40.0mm, D=110.0mm, B=27.0mm, Mass bearing=1.4kg
Material: Bearing steels
In Stock:

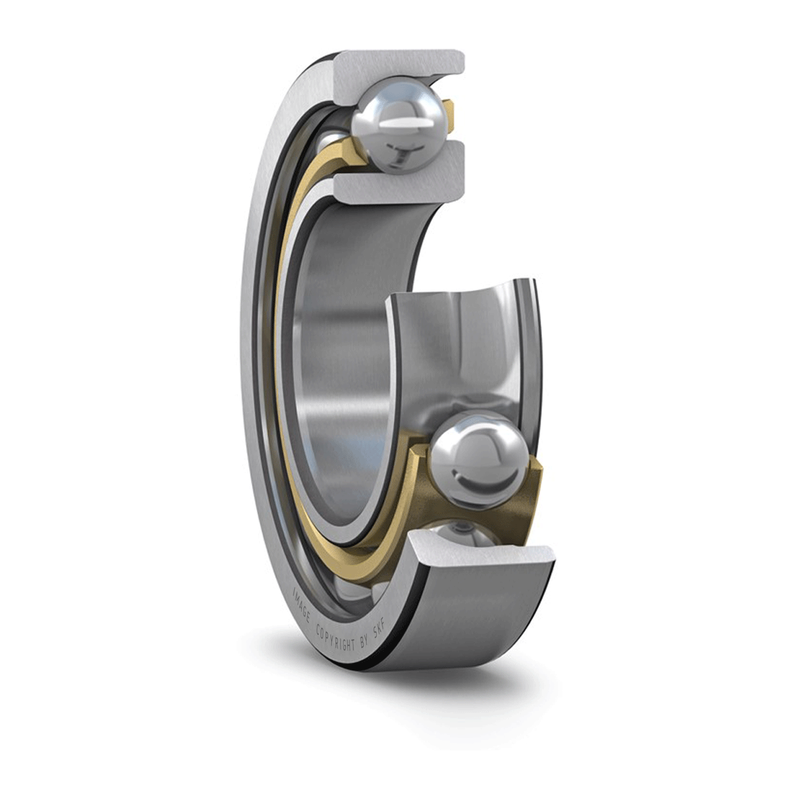

Photo may not represent actual item. See the technical specification for details.

Specifications of SKF Bearing 7408 BCBM

SKF Bearing 7408 BCBM

Dimensions

d 40.0mm Bore diameter
D 110.0mm Outside diameter
B 27.0mm Width
d1 67.86mm Shoulder diameter of inner ring (large side face)
d2 55.75mm Shoulder diameter of inner ring (small side face)
D1 83.35mm Shoulder diameter of outer ring (large side face)
a 45.0mm Distance side face to pressure point
r1,2 1.5mm Chamfer dimension
r3,4 2.0mm Chamfer dimension
SKF Bearing 7408 BCBM

Abutment dimensions

da 55.0mm Diameter of shaft abutment
Da 110.0mm Abutment diameter housing
Db 97.5mm Diameter of housing abutment
ra 2.0mm Radius of fillet
rb 2.0mm Radius of fillet

Calculation data

Basic dynamic load rating C 70.2kN
Basic static load rating C0 45.0kN
Fatigue load limit Pu 1.9kN
Reference speed 8000.0r/min
Limiting speed 11000.0r/min
Minimum axial load factor A 0.0385
Minimum radial load factor kr 0.1
Limiting value e 1.14

Mass

Mass 1.4kg

Product description of SKF Bearing 7408 BCBM

SKF Bearing 7408 BCBM, SKF single row angular contact ball bearings can accommodate axial loads in one direction only. This type of bearing is typically adjusted against a second bearing. Their bearing rings have an upper and a lower shoulder and are non-separable.Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis SKF Bearing 7408 BCBM, Single row angular contact ball bearings are particularly suitable

where:
bearing arrangements must support combined loads moderate to high axial loads are present on one side rigid axial guidance is required the bearing arrangement must be axially clearance-free or preload-ed high speeds are required under higher radial and axial loads.

SKF Bearing 7408 BCBM, The SKF standard assortment of single row angular contact ball bearings (fig. 1) includes:
bearings in the 72 B(E) and 73 B(E) series with 40° contact angle
some sizes in the 70 B series
sealed bearings:
in series 72 B(E) (15 ≤ d ≤ 55 mm)
in series 73 B(E) (12 ≤ d ≤ 50 mm)
bearings in the 72 AC series with 25° contact angle (15 ≤ d ≤ 70 mm)
bearings in the 73 AC series with 25° contact angle (17 ≤ d ≤ 70 mm)
some large size bearings with a flanged outer ring
SKF inch bearings (ALS and AMS series)
are available with 25° and 40° contact angles are intended to be used in sets have ring widths and standouts manufactured to tight tolerances can also be used in place of basic design bearings for arrangements with single bearings, as they typically have higher precision, and increased load carrying capacity and speed capability When two bearings are mounted immediately adjacent to each other, a given internal clearance or preload or an even load distribution between the two bearings is obtained without the use of shims or similar devices.
Bearings for universal matching are identified by the following suffixes:
CA, CB, CC or G for internal clearance
GA, GB or GC for preload
When ordering, indicate the number of individual bearings required and not the number of sets.
