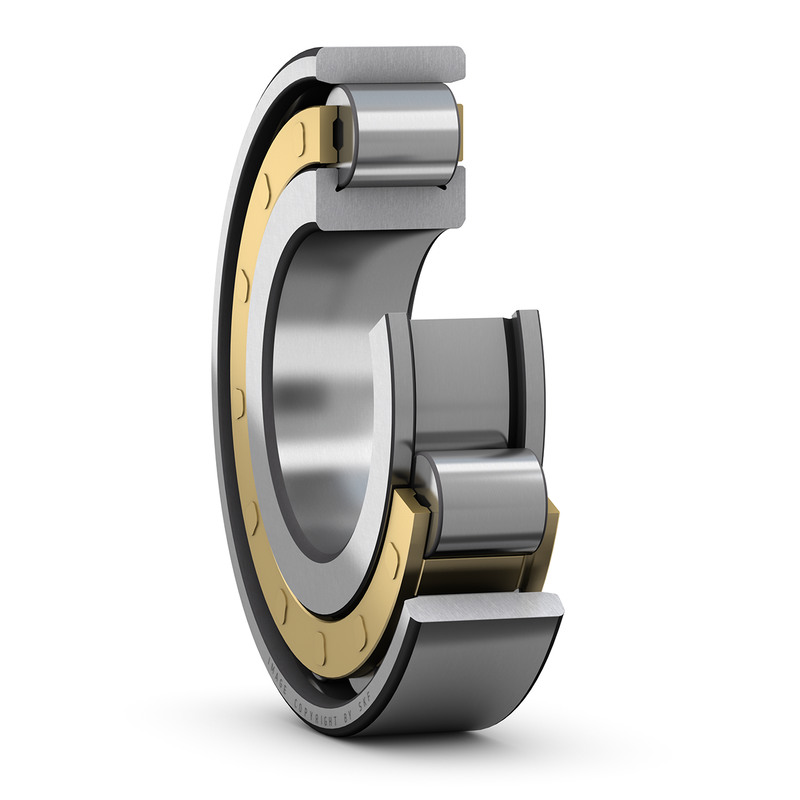

Specifications of SKF Bearing CRL 32 AMB
| Aftermarket only | Yes |
Dimensions
| d | 101.6mm | Bore diameter |
| D | 184.15mm | Outside diameter |
| B | 31.75mm | Width |
| d1 | 130.0mm | Shoulder diameter of inner ring |
| E | 165.0mm | Raceway diameter of outer ring |
| r1,2 | 3.2mm | Chamfer dimension |
| r3,4 | 3.2mm | Chamfer dimension |
| s | 1.5mm | Permissible axial displacement |
Abutment dimensions
| da | 116.0mm | Diameter of spacer sleeve |
| da | 162.0mm | Diameter of spacer sleeve |
| Da | 167.0mm | Diameter of housing abutment |
| Da | 169.5mm | Diameter of housing abutment |
| ra | 2.5mm | Radius of fillet |
| rb | 2.5mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 233.0kN |
| Basic static load rating | C0 | 280.0kN |
| Fatigue load limit | Pu | 33.5kN |
| Reference speed | 3600.0r/min | |
| Limiting speed | 4300.0r/min | |
| Minimum load factor | kr | 0.12 |
| Limiting value | e | 0.2 |
| Axial load factor | Y | 0.6 |
Mass
| Mass | 3.7kg |
