SKF Bearing L 555249/210

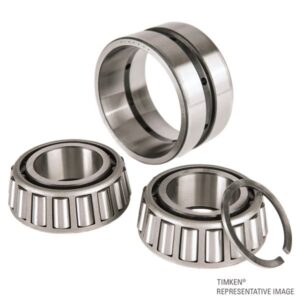

Photo may not represent actual item. See the technical specification for details.

Specifications of SKF Bearing L 555249/210

Dimension series L 555200
SKF Bearing L 555249/210

Dimensions

d 292.1mm Bore diameter
D 374.65mm Outside diameter
T 47.625mm Total width
d1 330.9mm Shoulder diameter of inner ring
B 47.625mm Width of inner ring
C 34.925mm Width of outer ring
r1,2 3.5mm Chamfer dimension of inner ring
r3,4 3.3mm Chamfer dimension of outer ring
a 64.292mm Distance side face to pressure point
SKF Bearing L 555249/210

Abutment dimensions

da 310.0mm Diameter of shaft abutment
db 310.0mm Diameter of shaft abutment
Da 350.0mm Diameter of housing abutment
Da 358.0mm Diameter of housing abutment
Db 361.0mm Diameter of housing abutment
Ca 9.0mm Minimum width of space required in housing on large side face
Cb 12.5mm Minimum width of space required in housing on small side face
ra 3.5mm Radius of shaft fillet
rb 3.3mm Radius of housing fillet

Calculation data

Basic dynamic load rating C 539.0kN
Basic static load rating C0 1140.0kN
Fatigue load limit Pu 98.0kN
Reference speed 1100.0r/min
Limiting speed 1500.0r/min
Limiting value e 0.4
Axial load factor Y 1.5
Axial load factor Y0 0.8

Mass

Mass 12.4kg
