SKF Bearing N 2207 ECM

d=35.0mm, D=72.0mm, B=23.0mm, Mass bearing=0.5kg
Material: Bearing steels
In Stock:

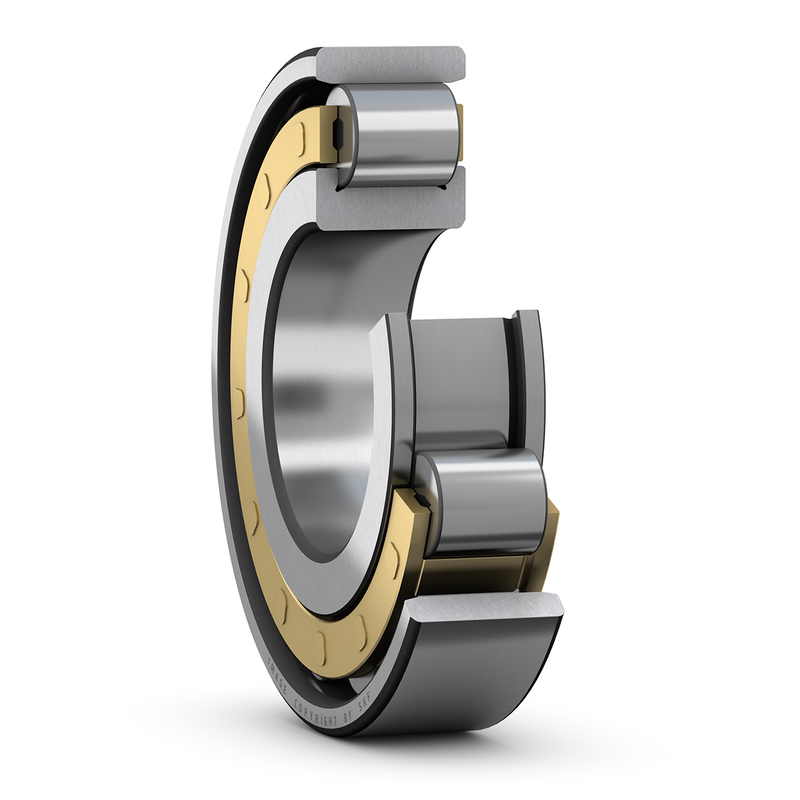

Photo may not represent actual item. See the technical specification for details.

Specifications of SKF Bearing N 2207 ECM

SKF Bearing N 2207 ECM

Dimensions

d 35.0mm Bore diameter
D 72.0mm Outside diameter
B 23.0mm Width
d1 48.1mm Shoulder diameter of inner ring
E 64.0mm Raceway diameter of outer ring
r1,2 1.1mm Chamfer dimension
r3,4 0.6mm Chamfer dimension
s 2.8mm Permissible axial displacement
SKF Bearing N 2207 ECM

Abutment dimensions

da 41.8mm Diameter of spacer sleeve
da 62.0mm Diameter of spacer sleeve
Da 66.0mm Diameter of housing abutment
Da 67.2mm Diameter of housing abutment
ra 1.0mm Radius of fillet
rb 0.6mm Radius of fillet

Calculation data

Basic dynamic load rating C 69.5kN
Basic static load rating C0 63.0kN
Fatigue load limit Pu 8.15kN
Reference speed 11000.0r/min
Limiting speed 12000.0r/min
Minimum load factor kr 0.16
Limiting value e 0.3
Axial load factor Y 0.4

Mass

Mass 0.5kg
