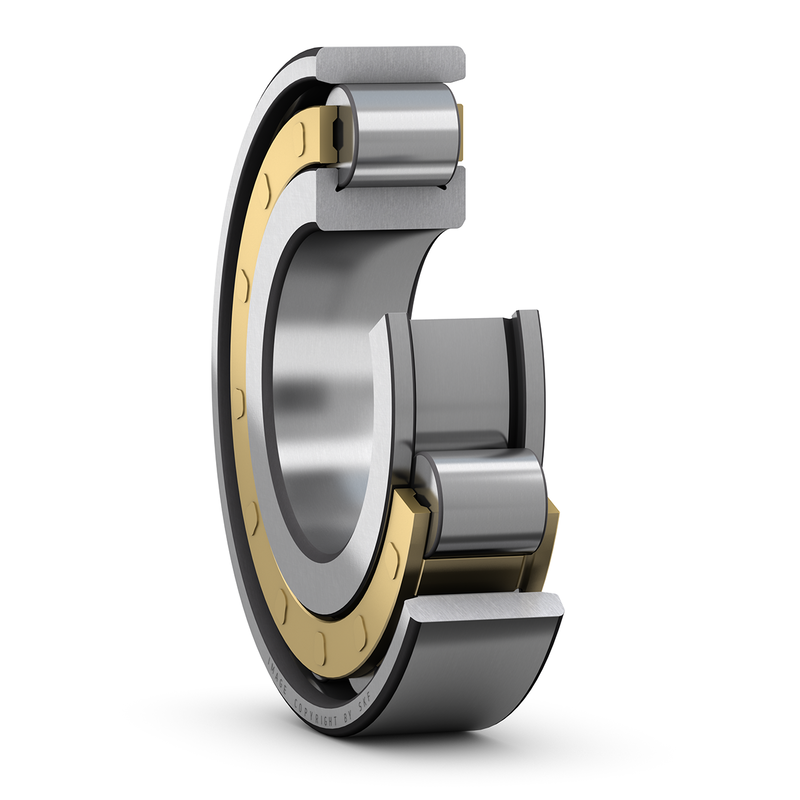

Specifications of SKF Bearing N 232 ECM
Dimensions
| d | 160.0mm | Bore diameter |
| D | 290.0mm | Outside diameter |
| B | 48.0mm | Width |
| d1 | 206.0mm | Shoulder diameter of inner ring |
| E | 259.0mm | Raceway diameter of outer ring |
| r1,2 | 3.0mm | Chamfer dimension |
| r3,4 | 3.0mm | Chamfer dimension |
| s | 2.7mm | Permissible axial displacement |
Abutment dimensions
| da | 175.0mm | Diameter of spacer sleeve |
| da | 255.0mm | Diameter of spacer sleeve |
| Da | 263.0mm | Diameter of housing abutment |
| Da | 275.0mm | Diameter of housing abutment |
| ra | 2.5mm | Radius of fillet |
| rb | 2.5mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 585.0kN |
| Basic static load rating | C0 | 680.0kN |
| Fatigue load limit | Pu | 72.0kN |
| Reference speed | 2400.0r/min | |
| Limiting speed | 2600.0r/min | |
| Minimum load factor | kr | 0.12 |
| Limiting value | e | 0.2 |
| Axial load factor | Y | 0.6 |
Mass
| Mass | 15.0kg |
