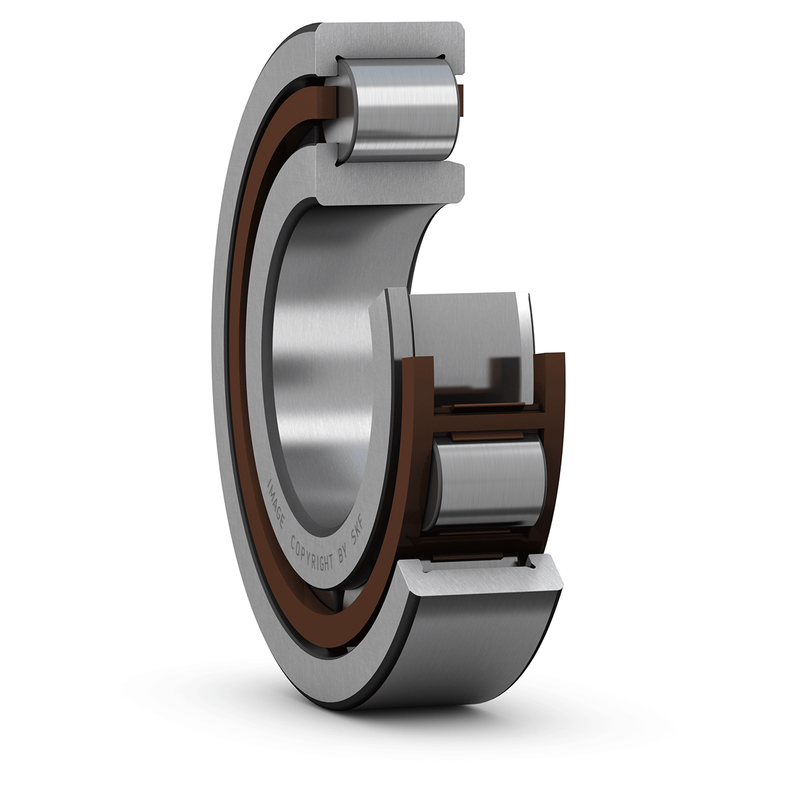

Specifications of SKF Bearing NJ 205 ECPH
Dimensions
| d | 25.0mm | Bore diameter |
| D | 52.0mm | Outside diameter |
| B | 15.0mm | Width |
| d1 | 34.7mm | Shoulder diameter of inner ring |
| D1 | 43.3mm | Shoulder diameter of outer ring |
| F | 31.5mm | Chamfer dimension of loose flange ring |
| r1,2 | 1.0mm | Chamfer dimension |
| r3,4 | 0.6mm | Chamfer dimension |
| s | 1.3mm | Permissible axial displacement |
Abutment dimensions
| da | 29.9mm | Diameter of spacer sleeve |
| da | 30.4mm | Diameter of spacer sleeve |
| db | 36.0mm | Diameter of shaft abutment |
| Da | 46.4mm | Diameter of housing abutment |
| ra | 1.0mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 32.5kN |
| Basic static load rating | C0 | 27.0kN |
| Fatigue load limit | Pu | 3.35kN |
| Reference speed | 15000.0r/min | |
| Limiting speed | 16000.0r/min | |
| Minimum load factor | kr | 0.15 |
| Limiting value | e | 0.2 |
| Axial load factor | Y | 0.6 |
Mass
| Mass | 0.14kg |
