SKF Bearing NU 20/800 ECMA
SKF Bearing NU 20/800 ECMA
SKF Bearing

SKF Bearing NU 20/800 ECMA

Category: SKF Bearing > Rolling bearings > Roller bearings > Cylindrical roller bearings > Single row

d=800.0mm, D=1150.0mm, B=200.0mm, Mass bearing=715.0kg
Material: Bearing steels
EMAIL: [email protected]
In Stock:
Specifications Product Description Literature & catalogs Videos Substitute products You may also like

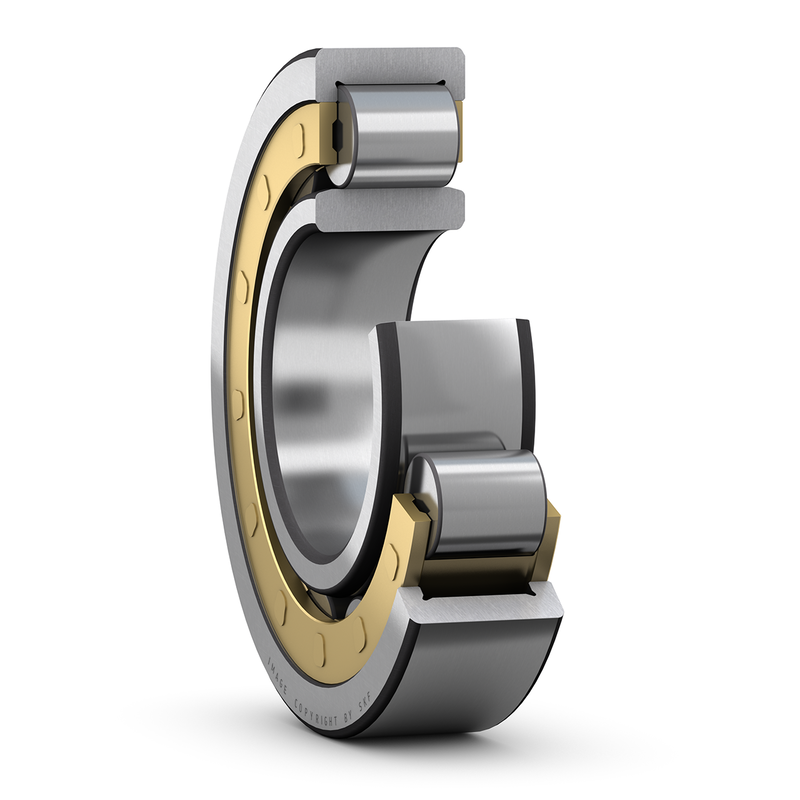

Photo may not represent actual item. See the technical specification for details.

Specifications of SKF Bearing NU 20/800 ECMA

SKF Bearing NU 20/800 ECMA

Dimensions

d 800.0mm Bore diameter
D 1150.0mm Outside diameter
B 200.0mm Width
D1 1051.0mm Shoulder diameter of outer ring
F 882.0mm Chamfer dimension of loose flange ring
r1,2 7.5mm Chamfer dimension
s 2.0mm Permissible axial displacement
SKF Bearing NU 20/800 ECMA

Abutment dimensions

da 828.0mm Diameter of spacer sleeve
da 868.0mm Diameter of spacer sleeve
db 888.0mm Diameter of shaft abutment
Da 1122.0mm Diameter of housing abutment
ra 6.0mm Radius of fillet

Calculation data

Basic dynamic load rating C 7040.0kN
Basic static load rating C0 14600.0kN
Fatigue load limit Pu 950.0kN
Reference speed 400.0r/min
Limiting speed 630.0r/min
Minimum load factor kr 0.14
Limiting value e 0.3
Axial load factor Y 0

Mass

Mass 715.0kg
