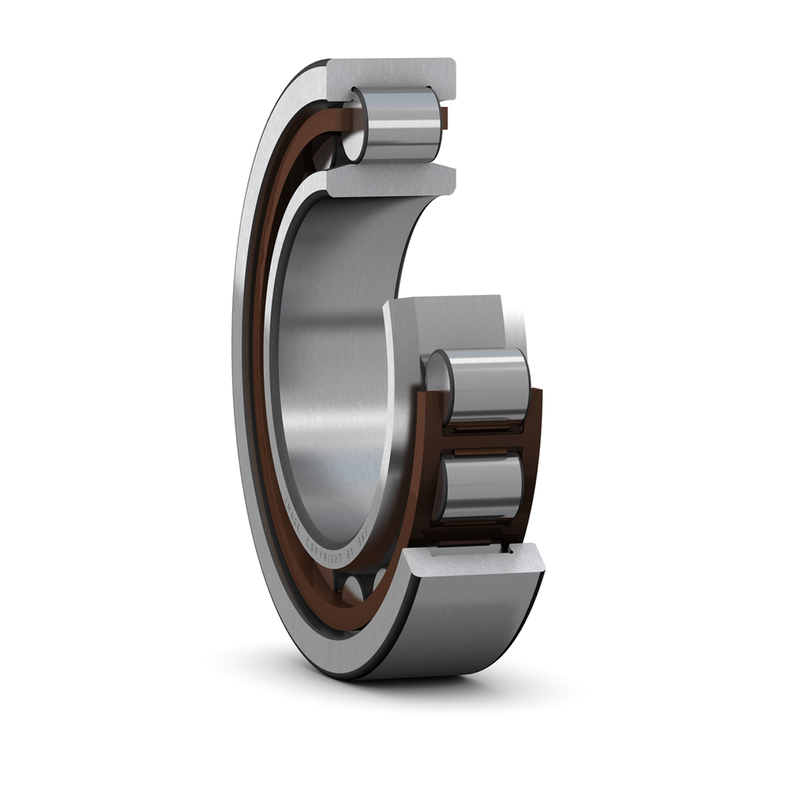

Specifications of SKF Bearing NU 207 ECP
Dimensions
| d | 35.0mm | Bore diameter |
| D | 72.0mm | Outside diameter |
| B | 17.0mm | Width |
| D1 | 60.33mm | Shoulder diameter of outer ring |
| F | 44.0mm | Chamfer dimension of loose flange ring |
| r1,2 | 1.1mm | Chamfer dimension |
| r3,4 | 0.6mm | Chamfer dimension |
| s | 1.3mm | Permissible axial displacement |
Abutment dimensions
| da | 39.8mm | Diameter of spacer sleeve |
| da | 42.2mm | Diameter of spacer sleeve |
| db | 46.0mm | Diameter of shaft abutment |
| Da | 65.1mm | Diameter of housing abutment |
| ra | 1.0mm | Radius of fillet |
| rb | 0.6mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 56.0kN |
| Basic static load rating | C0 | 48.0kN |
| Fatigue load limit | Pu | 6.1kN |
| Reference speed | 11000.0r/min | |
| Limiting speed | 12000.0r/min | |
| Minimum load factor | kr | 0.15 |
| Limiting value | e | 0.2 |
| Axial load factor | Y | 0.6 |
Mass
| Mass | 0.29kg |
Associated products
| Angle ring | HJ 207 EC |
