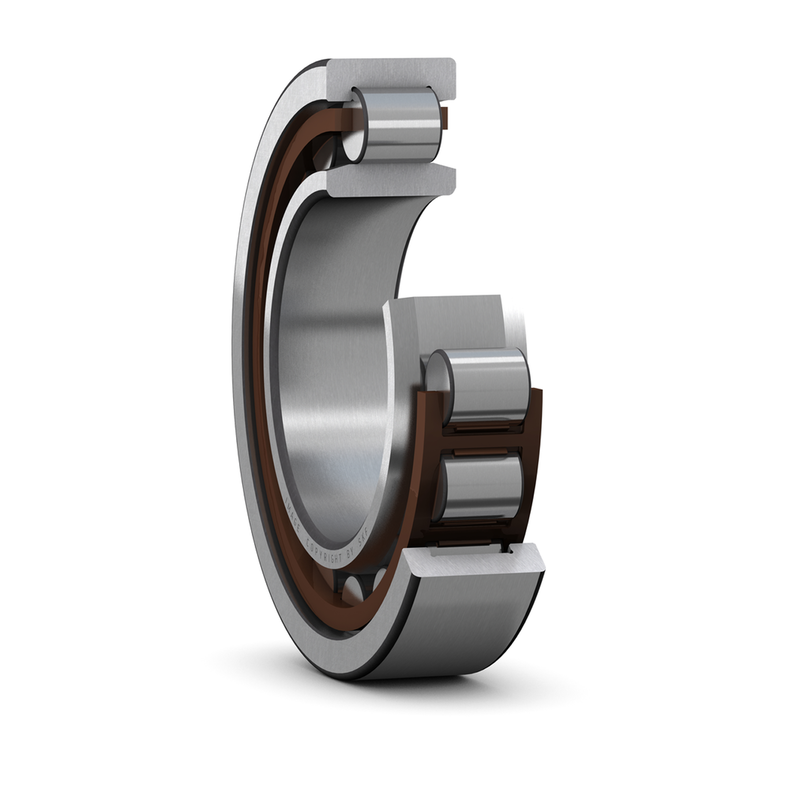

Specifications of SKF Bearing NU 210 ECP
Dimensions
| d | 50.0mm | Bore diameter |
| D | 90.0mm | Outside diameter |
| B | 20.0mm | Width |
| D1 | 77.4mm | Shoulder diameter of outer ring |
| F | 59.5mm | Chamfer dimension of loose flange ring |
| r1,2 | 1.1mm | Chamfer dimension |
| r3,4 | 1.1mm | Chamfer dimension |
| s | 1.5mm | Permissible axial displacement |
Abutment dimensions
| da | 57.0mm | Diameter of spacer sleeve |
| da | 57.5mm | Diameter of spacer sleeve |
| db | 61.0mm | Diameter of shaft abutment |
| Da | 82.4mm | Diameter of housing abutment |
| ra | 1.0mm | Radius of fillet |
| rb | 1.0mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 73.5kN |
| Basic static load rating | C0 | 69.5kN |
| Fatigue load limit | Pu | 8.8kN |
| Reference speed | 8500.0r/min | |
| Limiting speed | 9000.0r/min | |
| Minimum load factor | kr | 0.15 |
| Limiting value | e | 0.2 |
| Axial load factor | Y | 0.6 |
Mass
| Mass | 0.47kg |
Associated products
| Angle ring | HJ 210 EC |
