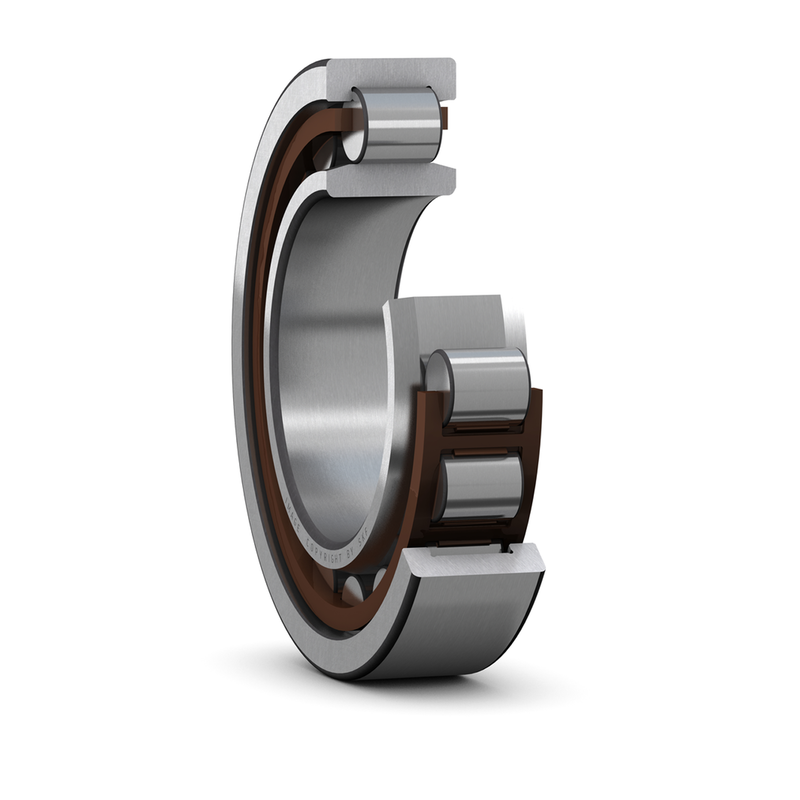

Specifications of SKF Bearing NU 2222 ECP
Dimensions
| d | 110.0mm | Bore diameter |
| D | 200.0mm | Outside diameter |
| B | 53.0mm | Width |
| D1 | 172.48mm | Shoulder diameter of outer ring |
| F | 132.5mm | Chamfer dimension of loose flange ring |
| r1,2 | 2.1mm | Chamfer dimension |
| r3,4 | 2.1mm | Chamfer dimension |
| s | 3.7mm | Permissible axial displacement |
Abutment dimensions
| da | 122.0mm | Diameter of spacer sleeve |
| da | 129.0mm | Diameter of spacer sleeve |
| db | 135.0mm | Diameter of shaft abutment |
| Da | 187.0mm | Diameter of housing abutment |
| ra | 2.0mm | Radius of fillet |
| rb | 2.0mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 440.0kN |
| Basic static load rating | C0 | 520.0kN |
| Fatigue load limit | Pu | 61.0kN |
| Reference speed | 3600.0r/min | |
| Limiting speed | 4000.0r/min | |
| Minimum load factor | kr | 0.2 |
| Limiting value | e | 0.3 |
| Axial load factor | Y | 0.4 |
Mass
| Mass | 6.68kg |
