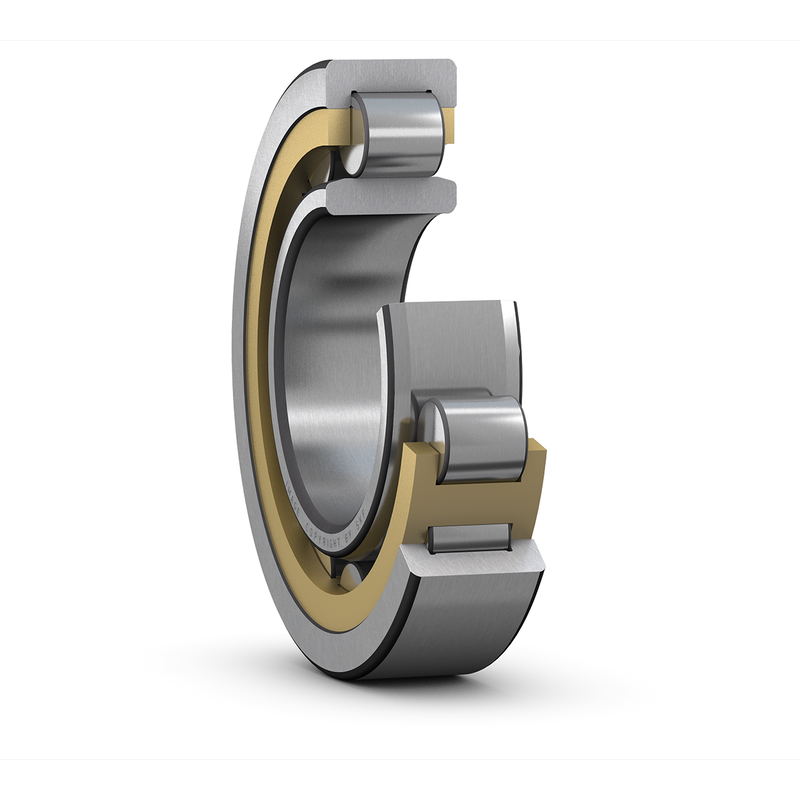

Specifications of SKF Bearing NU 2224 ECML
Dimensions
| d | 120.0mm | Bore diameter |
| D | 215.0mm | Outside diameter |
| B | 58.0mm | Width |
| D1 | 187.75mm | Shoulder diameter of outer ring |
| F | 143.5mm | Chamfer dimension of loose flange ring |
| r1,2 | 2.1mm | Chamfer dimension |
| r3,4 | 2.1mm | Chamfer dimension |
| s | 3.8mm | Permissible axial displacement |
Abutment dimensions
| da | 132.0mm | Diameter of spacer sleeve |
| da | 140.0mm | Diameter of spacer sleeve |
| db | 146.0mm | Diameter of shaft abutment |
| Da | 201.6mm | Diameter of housing abutment |
| ra | 2.0mm | Radius of fillet |
| rb | 2.0mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 520.0kN |
| Basic static load rating | C0 | 630.0kN |
| Fatigue load limit | Pu | 72.0kN |
| Reference speed | 3400.0r/min | |
| Limiting speed | 5600.0r/min | |
| Minimum load factor | kr | 0.3 |
| Limiting value | e | 0.3 |
| Axial load factor | Y | 0.4 |
Mass
| Mass | 9.16kg |
Associated products
| Angle ring | HJ 2224 EC |
