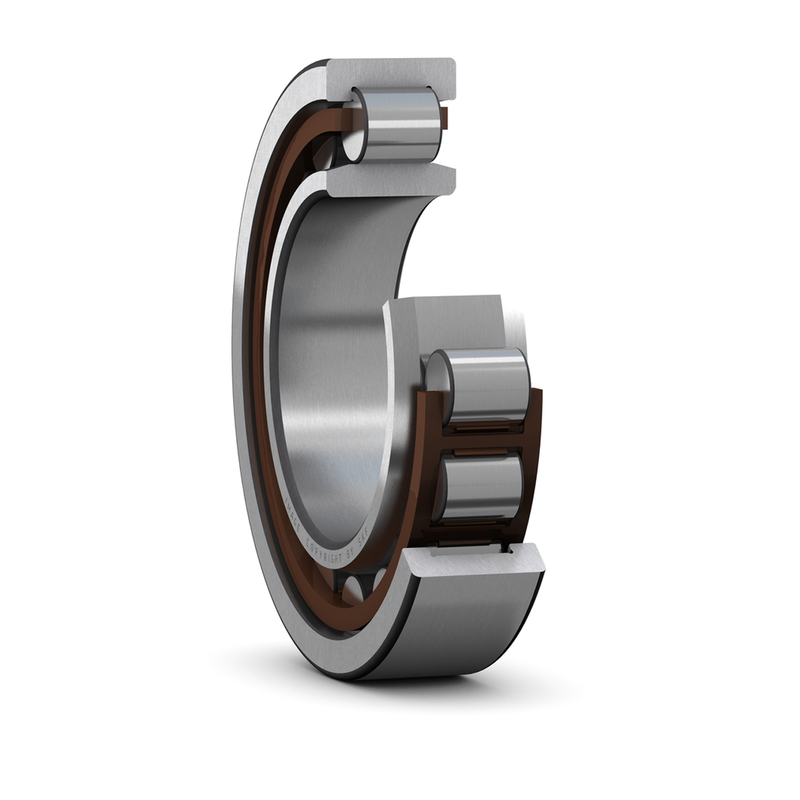

SKF Bearing NU 2305 ECP

P: Glass fibre reinforced PA66 cage, rolling element centred
d=25.0mm, D=62.0mm, B=24.0mm, Mass bearing=0.34kg
Material: Bearing steels
In Stock:
Photo may not represent actual item. See the technical specification for details.

Specifications of SKF Bearing NU 2305 ECP

SKF Bearing NU 2305 ECP

Dimensions

d 25.0mm Bore diameter
D 62.0mm Outside diameter
B 24.0mm Width
D1 50.15mm Shoulder diameter of outer ring
F 34.0mm Chamfer dimension of loose flange ring
r1,2 1.1mm Chamfer dimension
r3,4 1.1mm Chamfer dimension
s 2.3mm Permissible axial displacement
SKF Bearing NU 2305 ECP

Abutment dimensions

da 31.0mm Diameter of spacer sleeve
da 32.5mm Diameter of spacer sleeve
db 36.0mm Diameter of shaft abutment
Da 54.9mm Diameter of housing abutment
ra 1.0mm Radius of fillet
rb 1.0mm Radius of fillet

Calculation data

Basic dynamic load rating C 64.0kN
Basic static load rating C0 55.0kN
Fatigue load limit Pu 6.95kN
Reference speed 12000.0r/min
Limiting speed 15000.0r/min
Minimum load factor kr 0.25
Limiting value e 0.3
Axial load factor Y 0.4

Mass

Mass 0.34kg

Associated products

Angle ring HJ 2305 EC
