SKF Bearing NU 2318 ECJ

J: Stamped steel cage, rolling element centred
d=90.0mm, D=190.0mm, B=64.0mm, Mass bearing=8.1kg
Material: Bearing steels
In Stock:

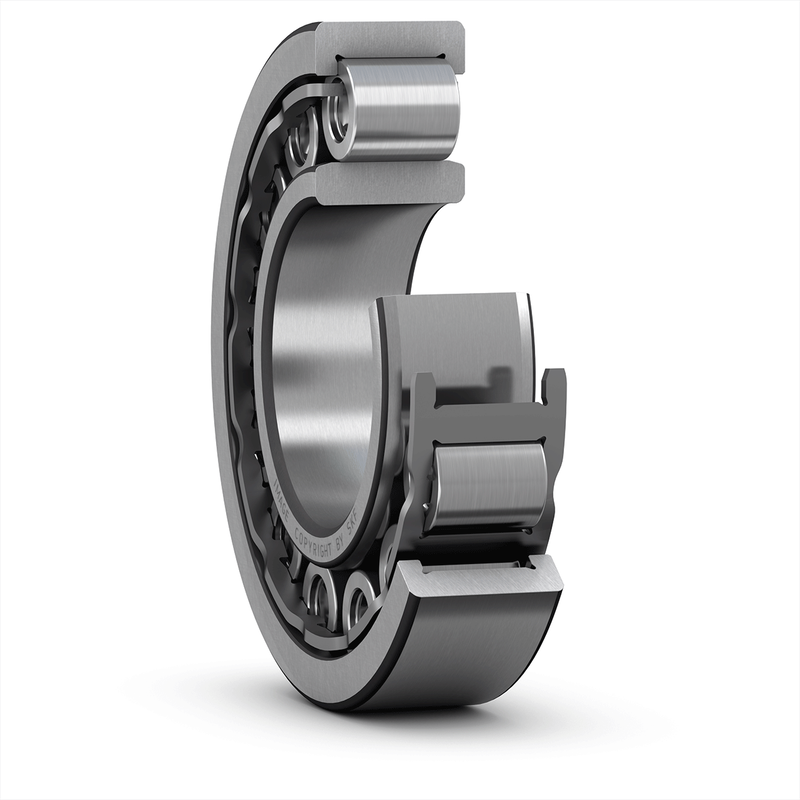

Photo may not represent actual item. See the technical specification for details.

Specifications of SKF Bearing NU 2318 ECJ

SKF Bearing NU 2318 ECJ

Dimensions

d 90.0mm Bore diameter
D 190.0mm Outside diameter
B 64.0mm Width
D1 160.25mm Shoulder diameter of outer ring
F 113.5mm Chamfer dimension of loose flange ring
r1,2 3.0mm Chamfer dimension
r3,4 3.0mm Chamfer dimension
s 6.0mm Permissible axial displacement
SKF Bearing NU 2318 ECJ

Abutment dimensions

da 104.0mm Diameter of spacer sleeve
da 110.0mm Diameter of spacer sleeve
db 116.0mm Diameter of shaft abutment
Da 175.3mm Diameter of housing abutment
ra 2.5mm Radius of fillet
rb 2.5mm Radius of fillet

Calculation data

Basic dynamic load rating C 500.0kN
Basic static load rating C0 540.0kN
Fatigue load limit Pu 65.5kN
Reference speed 3800.0r/min
Limiting speed 4500.0r/min
Minimum load factor kr 0.25
Limiting value e 0.3
Axial load factor Y 0.4

Mass

Mass 8.1kg

Associated products

Angle ring HJ 2318 EC
