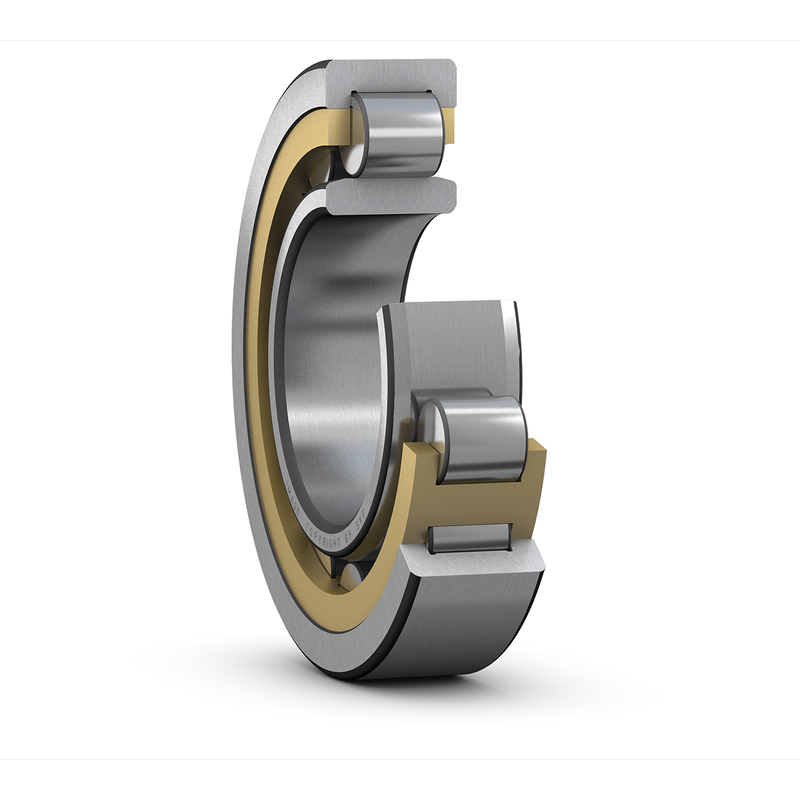

Specifications of SKF Bearing NU 236 ECML
Dimensions
d | 180.0mm | Bore diameter |
D | 320.0mm | Outside diameter |
B | 52.0mm | Width |
D1 | 278.6mm | Shoulder diameter of outer ring |
F | 217.0mm | Chamfer dimension of loose flange ring |
r1,2 | 4.0mm | Chamfer dimension |
r3,4 | 4.0mm | Chamfer dimension |
s | 2.9mm | Permissible axial displacement |
Abutment dimensions
da | 198.0mm | Diameter of spacer sleeve |
da | 213.0mm | Diameter of spacer sleeve |
db | 220.0mm | Diameter of shaft abutment |
Da | 302.2mm | Diameter of housing abutment |
ra | 3.0mm | Radius of fillet |
rb | 3.0mm | Radius of fillet |
Calculation data
Basic dynamic load rating | C | 720.0kN |
Basic static load rating | C0 | 850.0kN |
Fatigue load limit | Pu | 88.0kN |
Reference speed | 2200.0r/min | |
Limiting speed | 3600.0r/min | |
Minimum load factor | kr | 0.23 |
Limiting value | e | 0.2 |
Axial load factor | Y | 0.6 |
Mass
Mass | 18.5kg |
Associated products
Angle ring | HJ 236 EC |
