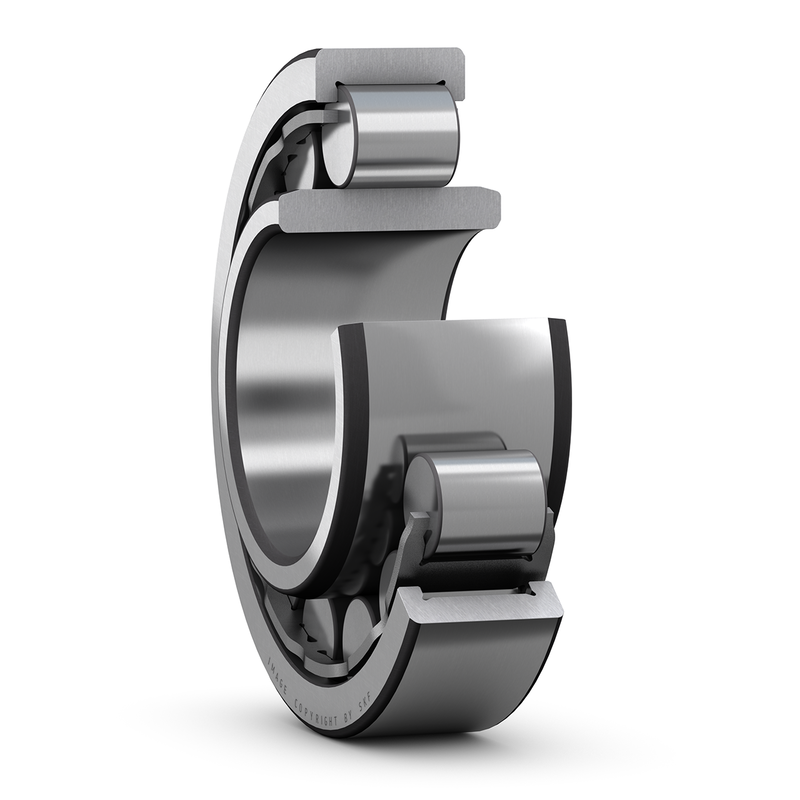

Specifications of SKF Bearing NUB 217 ECJ
Dimensions
| d | 85.0mm | Bore diameter |
| D | 150.0mm | Outside diameter |
| B | 36.0mm | Width |
| C | 28.0mm | Width of outer ring |
| D1 | 130.3mm | Shoulder diameter of outer ring |
| F | 100.5mm | Chamfer dimension of loose flange ring |
| r1,2 | 2.0mm | Chamfer dimension |
| r3,4 | 2.0mm | Chamfer dimension |
| s | 5.3mm | Permissible axial displacement |
Abutment dimensions
| da | 96.0mm | Diameter of spacer sleeve |
| da | 98.0mm | Diameter of spacer sleeve |
| db | 103.0mm | Diameter of shaft abutment |
| Da | 138.5mm | Diameter of housing abutment |
| ra | 2.0mm | Radius of fillet |
| rb | 2.0mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 190.0kN |
| Basic static load rating | C0 | 200.0kN |
| Fatigue load limit | Pu | 25.0kN |
| Reference speed | 4800.0r/min | |
| Limiting speed | 5300.0r/min | |
| Minimum load factor | kr | 0.15 |
| Limiting value | e | 0.3 |
| Axial load factor | Y | 0.4 |
Mass
| Mass | 2.12kg |
