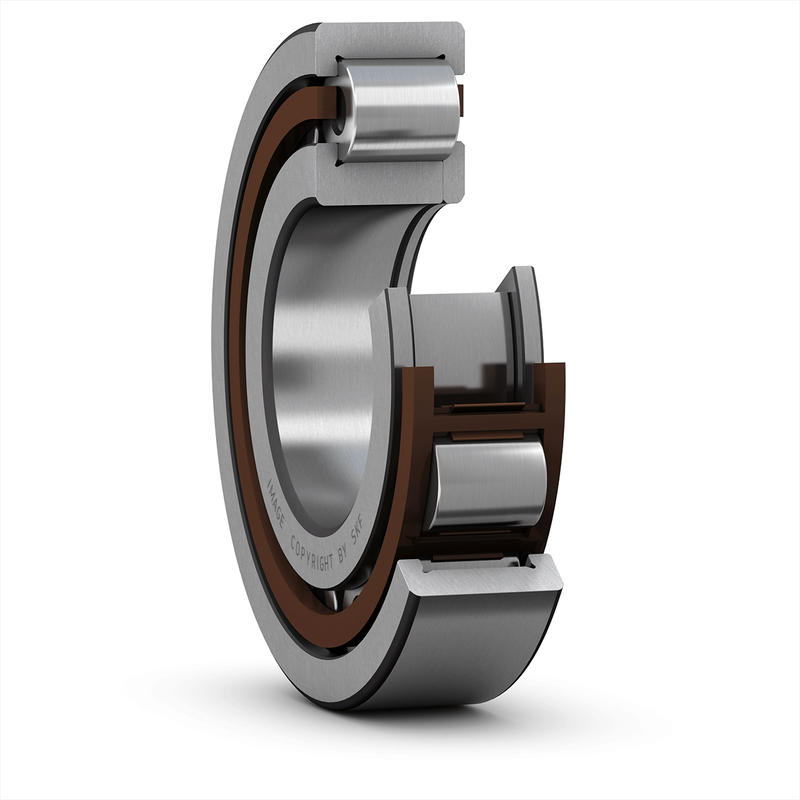

Specifications of SKF Bearing NUP 2206 ECP
Dimensions
| d | 30.0mm | Bore diameter |
| D | 62.0mm | Outside diameter |
| B | 20.0mm | Width |
| d1 | 41.2mm | Shoulder diameter of inner ring |
| D1 | 51.95mm | Shoulder diameter of outer ring |
| F | 37.5mm | Chamfer dimension of loose flange ring |
| r1,2 | 1.0mm | Chamfer dimension |
| r3,4 | 0.6mm | Chamfer dimension of loose flange ring |
Abutment dimensions
| da | 35.3mm | Diameter of spacer sleeve |
| db | 43.0mm | Diameter of shaft abutment |
| Da | 55.9mm | Diameter of housing abutment |
| ra | 1.0mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 55.0kN |
| Basic static load rating | C0 | 49.0kN |
| Fatigue load limit | Pu | 6.1kN |
| Reference speed | 13000.0r/min | |
| Limiting speed | 14000.0r/min | |
| Minimum load factor | kr | 0.2 |
| Limiting value | e | 0.3 |
| Axial load factor | Y | 0.4 |
Mass
| Mass | 0.27kg |
