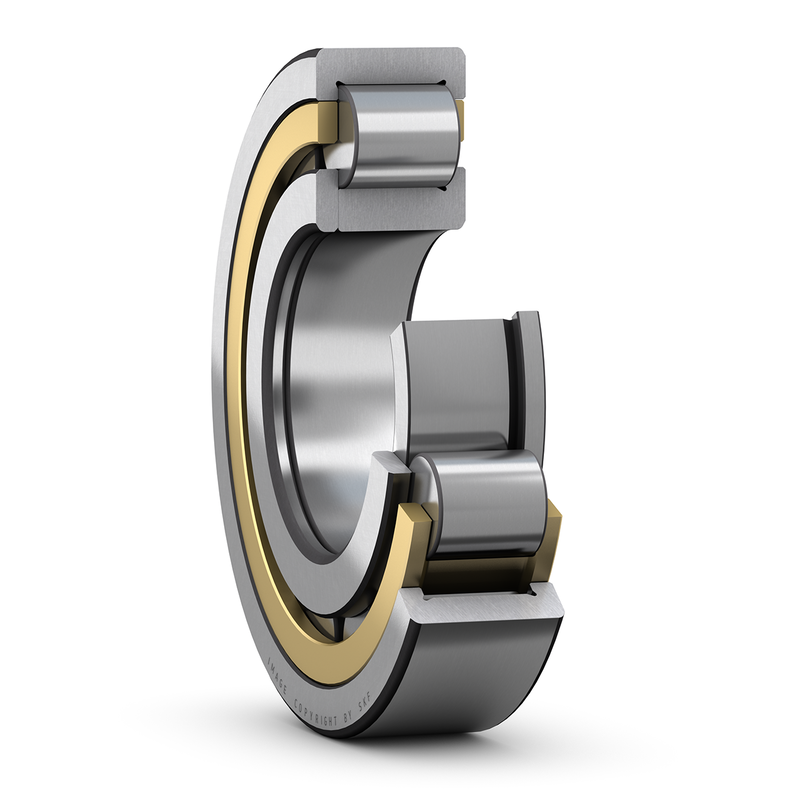

Specifications of SKF Bearing NUP 2211 ECML
Dimensions
| d | 55.0mm | Bore diameter |
| D | 100.0mm | Outside diameter |
| B | 25.0mm | Width |
| d1 | 70.8mm | Shoulder diameter of inner ring |
| D1 | 86.25mm | Shoulder diameter of outer ring |
| F | 66.0mm | Chamfer dimension of loose flange ring |
| r1,2 | 1.5mm | Chamfer dimension |
| r3,4 | 1.1mm | Chamfer dimension of loose flange ring |
Abutment dimensions
| da | 63.0mm | Diameter of spacer sleeve |
| db | 73.0mm | Diameter of shaft abutment |
| Da | 91.4mm | Diameter of housing abutment |
| ra | 1.5mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 114.0kN |
| Basic static load rating | C0 | 118.0kN |
| Fatigue load limit | Pu | 15.3kN |
| Reference speed | 7500.0r/min | |
| Limiting speed | 13000.0r/min | |
| Minimum load factor | kr | 0.3 |
| Limiting value | e | 0.3 |
| Axial load factor | Y | 0.4 |
Mass
| Mass | 0.92kg |
