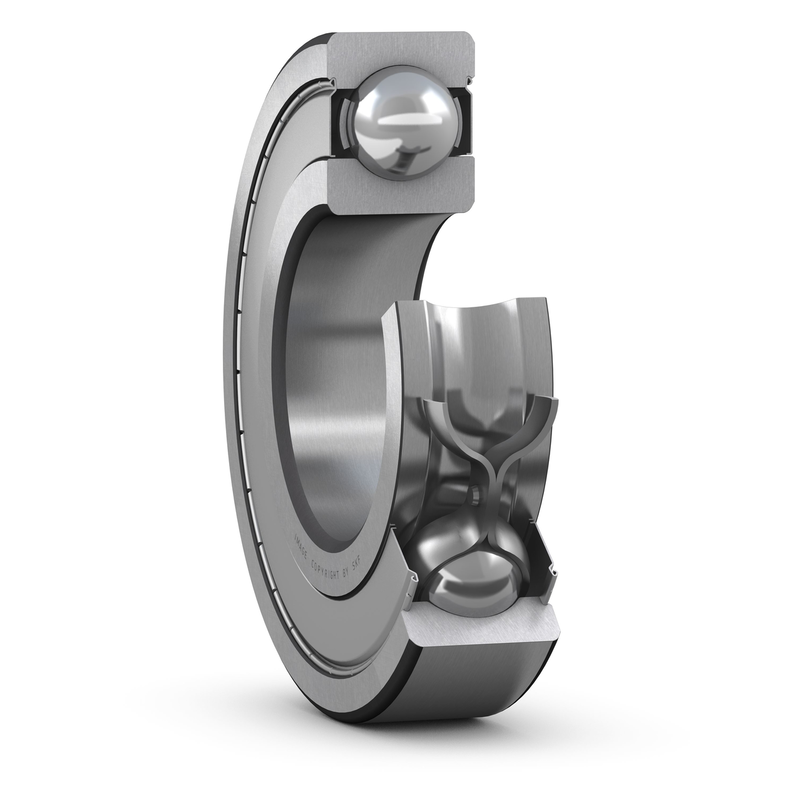

Specifications of SKF Bearing W 61806-2Z
Dimensions
d | 30.0mm | Bore diameter |
D | 42.0mm | Outside diameter |
B | 7.0mm | Width |
d1 | 33.11mm | Shoulder diameter |
d2 | 33.11mm | Recess diameter |
D2 | 39.2mm | Recess diameter |
r1,2 | 0.3mm | Chamfer dimension |
Abutment dimensions
da | 32.0mm | Diameter of shaft abutment |
da | 33.0mm | Diameter of shaft abutment |
Da | 40.0mm | Diameter of housing abutment |
ra | 0.3mm | Radius of shaft or housing fillet |
Calculation data
Basic dynamic load rating | C | 3.58kN |
Basic static load rating | C0 | 2.9kN |
Fatigue load limit | Pu | 0.125kN |
Reference speed | 34000.0r/min | |
Limiting speed | 17000.0r/min | |
Minimum load factor | kr | 0.02 |
Calculation factor | f0 | 14.1 |
Mass
Mass bearing | 0.023kg |
Tolerance class
Dimensional tolerances | Normal |
Radial run-out | Normal |
