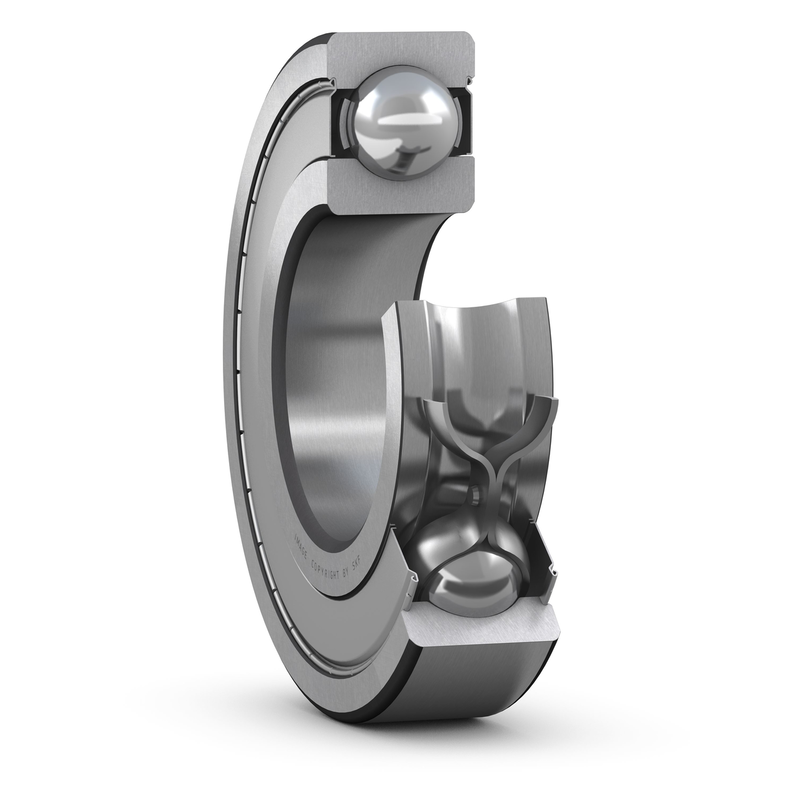

Specifications of SKF Bearing W 628/6-2Z
Dimensions
d | 6.0mm | Bore diameter |
D | 13.0mm | Outside diameter |
B | 5.0mm | Width |
d2 | 7.4mm | Recess diameter |
D2 | 11.7mm | Recess diameter |
r1,2 | 0.15mm | Chamfer dimension |
Abutment dimensions
da | 7.2mm | Diameter of shaft abutment |
da | 7.3mm | Diameter of shaft abutment |
Da | 11.8mm | Diameter of housing abutment |
ra | 0.15mm | Radius of shaft or housing fillet |
Calculation data
Basic dynamic load rating | C | 0.618kN |
Basic static load rating | C0 | 0.224kN |
Fatigue load limit | Pu | 0.01kN |
Reference speed | 110000.0r/min | |
Limiting speed | 53000.0r/min | |
Minimum load factor | kr | 0.02 |
Calculation factor | f0 | 7.0 |
Mass
Mass bearing | 0.0026kg |
Tolerance class
Dimensional tolerances | Normal |
Radial run-out | Normal |
