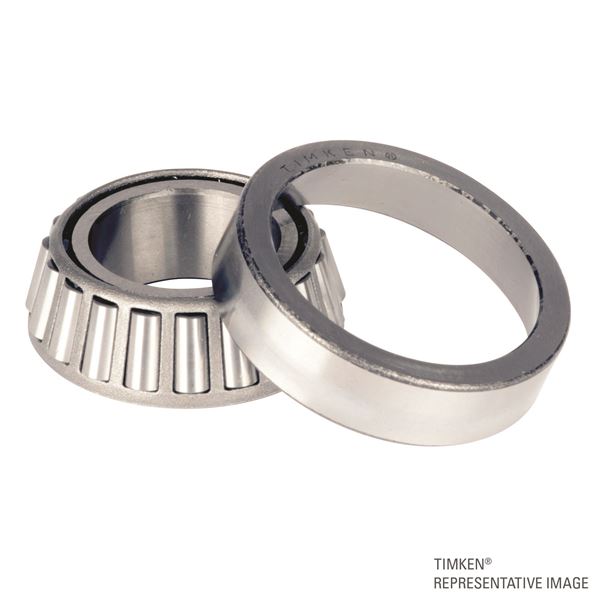

Specifications of TIMKEN Bearing 07096 - 07196
![TIMKEN Bearing 07096 - 07196](https://cad.timken.com/Asset/TRB-TS-Line-Drawing.jpg)
Specifications
Series |
07000 |
Cone Part Number |
07096 |
Cup Part Number |
07196 |
Design Unit |
Inch |
Bearing Weight |
0.3 lb0.1 Kg |
Cage Material |
Stamped Steel |
Dimensions
d – Bore |
0.9905 in25.159 mm |
D – Cup Outer Diameter |
1.9687 in50.005 mm |
B – Cone Width |
0.5614 in14.260 mm |
C – Cup Width |
0.3750 in9.525 mm |
T – Bearing Width |
0.5313 in13.495 mm |
Abutment and Fillet Dimensions
R – Cone Backface “To Clear” Radius1 |
0.06 in1.5 mm |
r – Cup Backface “To Clear” Radius2 |
0.04 in1.02 mm |
da – Cone Frontface Backing Diameter |
1.16 in29.5 mm |
db – Cone Backface Backing Diameter |
1.24 in31.5 mm |
Da – Cup Frontface Backing Diameter |
1.87 in47.50 mm |
Db – Cup Backface Backing Diameter |
1.75 in44.45 mm |
Ab – Cage-Cone Frontface Clearance |
0.08 in2 mm |
Aa – Cage-Cone Backface Clearance |
0 in0 mm |
a – Effective Center Location3 |
-0.11 in-2.8 mm |
