Specifications of TIMKEN Bearing 16004
TIMKEN Bearing 16004
Category: TIMKEN Bearing > Ball Bearing > Deep Groove Ball Bearings > Narrow Section Ball Bearings (16000, 16100)
Timken’s deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality.
d= 20 mm, D= 42 mm, B= 8 mm, Mass= 0.3 mm
Material: Bearing steels
EMAIL: [email protected]
In Stock:

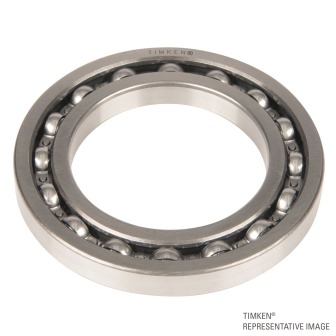

Photo may not represent actual item. See the technical specification for details.
Product description of TIMKEN Bearing 16004
TIMKEN Bearing 16004, it belongs to TIMKEN Bearing > Ball Bearing > Deep Groove Ball Bearings > Narrow Section Ball Bearings (16000, 16100), and related type you may also like TIMKEN Bearing 16004. Timken’s deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality. TIMKEN Bearing 16004,TIMKEN Deep Groove Narrow Section Ball Bearings (16000, 16100),
Single row bearings are particularly suitable where:
high and very high speeds are required
the bearing arrangement must be operated with very low friction
very low running noise is required, without reducing the speed, load carrying capacity and operating life of the bearing (Generation C)
high demands are made on the sealing of the bearing, without increasing heat generation or limiting the speed (Generation C)
the bearing position is to be designed particularly economically
Double row bearings can be considered for bearing arrangements where:
the load carrying capacity of single row deep groove ball bearings is no longer sufficient
axial loads in both directions and/or tilting moments must be supported in addition to radial loads
a high load carrying capacity is required and the design envelope available in a radial and axial direction is relatively small.
TIMKEN Bearing 16004,TIMKEN Deep Groove Narrow Section Ball Bearings (16000, 16100), The invention relates to a narrow-sectioned elastic bearing for elastically
connecting portions of material, said bearing being formed by neighbouring portions that are devoid of material, and to a force-transmission device for a force- measuring device, in particular weighing apparatus comprising at least one elastic bearing of this type.
The-force transmission device has a fixed portion, a lever mechanism, which comprises a least one translation lever (9, 15, 17) and introduces the force into a measuring
Transformer and at least one longitudinally rigid, flexible coupling element (13, 14, 16), which has at least one narrow section and introduces the force into the lever mechanism. According to the invention, the lever(s) (9, 15, 17) is/are supported on the fixed portion (4) and/or on a lever that is connected in series (9, 15) by means of an elastic bearing (10, 20, 12)
comprising a narrow section. At least one narrow-section portion (21, 31, 41, 51,61, 71,81, 91) is delimited by concave portions (22, 23, 32, 33, 42, 43, 52, 53, 62, 63, 72, 73, 82, 83,92, 93) that are devoid of material and at least one of the portions devoid of material that delimit the narrow section (31, 41, 51, 61, 71, 81, 91) has a shape in the direction of the bearing,
You may also like TIMKEN Bearing 16004-2RS
