TIMKEN Bearing 220RYL1621

Timken’s four-row cylindrical roller bearings are designed for the rigors of daily use in applications where moderate and high speeds, high radial loads, elevated temperatures and debris are constant challenges. Designed with well-balanced cross sections, these bearings provide high-radial-load capacity within the bearing envelope.The radial internal clearance (RIC) for the bearing assembly must be included when ordering either a) the complete assembly or b) with the inner-ring set. It is advisable to order the inner-ring set independent of the outer ring set when the final grind of the inner-ring O.D. is accomplished after mounting on the roll neck.The RY bearing style incorporates two outer races with triple
flanges (solid ribs). The inner race is usually single-piece
construction. The outer assemblies consist of the outer race,
rollers and cages, which create a unitized construction. Handling
is made simple by this design. A loading slot is used for roller
insertion. Lubrication is generally accomplished via slots in the
faces of the outer ring. The cage is single-piece, fully machined brass
or steel material. The roller pockets are staggered between
the races.Two outer rings with integral ribs.
One-piece inner ring.
Face slots on outer rings.
Two solid-steel cages.
Material: Bearing steels
In Stock:

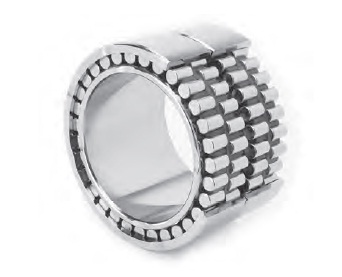

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing 220RYL1621

TIMKEN Bearing 220RYL1621

Specifications

Bore d

220 mm

Static Load Rating Co

772000 N3432000 lbf

Dynamic Load Rating C11

414000 N1840000 lbf

Weight

99.300 lb

Bearing Dimensions

O.D. D

310 mm12.2047 in

Width B

192 mm7.5591 in

Width C

192 mm7.5591 in

DUR/DOR F/E

246 mm9.6850 in

Type

RY-6

Mounting Data

Chamfer rsmin

3.0 mm0.12 in

Chamfer r1smin2

3 mm0.120 in

Backing Shaft Diameter ds

240.5 mm9.4700 in

Backing Housing Diameter Ds

290 mm11.4200 in

Sub Assembly Part Numbers

Inner-Ring Set

220ARVSL1621

Outer-Ring Set

246RYSL1621

Applications

N/A

Engineered primarily for rolling mill roll-neck applications,Timken’s four-row cylindrical bearings are commonly used inwork roll or back-up roll positions in flat product, long productand structural mills.

Product Features

  • Available in sizes 140 mm I.D. – 2000 mm O.D. (5.512 in – 78.740 in).
  • Case-hardened rings and rollers enhance durability.
  • Inner races are interchangeable with outer assemblies.
  • Manufactured to P6 boundary and P5 run out tolerances.
  • Roller profiles are custom designed and manufactured for optimum performance.
  • Straight and tapered bores are available.

Design Benefits

N/A

Our most common configurations available are types RY , RYL andRX. However, Timken also will custom design and manufacturebearings for your particular size and application requirements.If you have a new mill application, our engineers will work withyou in the earliest design stages to help you select the rightbearings.

Radial Internal Clearance (RIC)

N/A

Timken’s standard bearings offer different clearances, such asC3 or C4 according to DIN 620-4. If needed for your application,they can be furnished with a tapered bore.

Timken supplies inner rings in two ways: a finished state with noadditional grinding required or a semi-finished condition withappropriate grind stock. Semi-finished inner rings allow milloperators to optimize the roll’s precision by finish grinding theinner ring after mounting it onto the roll.

The part numbers for these bearings and inner-ring assembliesare identified by a CF suffix.

Lubrication

N/A

Timken four-row cylindrical roller bearings can be used withgrease, oil-air, oil-mist or circulating-oil systems. The bearingsmust be correctly lubricated for maximum performance througheither lubrication grooves, holes in the outer-ring O.D. or throughintegrated face slots on the outer-ring faces. See detailed designtypes on pages 84-87 for further information on the standardlubrication configurations by bearing type.

Material

N/A

Our bearings are designed to provide superior size stability,fracture toughness and reliability. By using only high quality,carburized alloy, and applying a special heat-treatment duringthe manufacturing process, we are able to produce bearingsthat can withstand the heavy stresses and impact loading oftenexperienced by multi-row cylindrical roller bearings used inrolling mills.

Mounting Design and Fitting Practice

N/A

The cylindrical roller bearing design accommodates radialloading only, therefore, a separate thrust bearing must be usedto provide axial shaft location.

The housing fitting practice usually results in a loose fit tofacilitate easy removal at regular maintenance intervals. Thepreferred shaft fit is tight. There are occasions where loose shaftfits are tolerated, such as on some roughing-mill equipment. Inthe cases where a shaft fit is loose, inner-race bore lubricationgrooves must be incorporated in the bearing. Check with yourTimken representative for a more details on mounting four-rowcylindrical roller bearings. Mounting information also is availablein the Timken Engineering Manual (order no. 10424) on timken.com/catalogs.

In order to facilitate the dismounting, face slots can be added onthe inner rings (W30B modification code).

Inner rings can be ordered separately from the outer assemblyin order to equip additional spare rolls. Inner- and outerringassemblies are interchangeable in regard to internalclearance.

Main Design Types

N/A

Optimized rolling elements and race geometry provides highradial-load capacity within the bearing envelope. In addition,multiple cage designs and materials allow for design flexibilityand preset radial clearance simplifies the installation process.

Product description of TIMKEN Bearing 220RYL1621

TIMKEN Bearing 220RYL1621,It belongs to TIMKEN Bearing > Cylindrical Roller Bearings > Cylindrical Roller Radial Bearings - Four-Row. Timken® four-row cylindrical roller bearings withstand the rigors of daily use in applications where moderate and high speeds, high radial loads, elevated temperatures and extreme debris present constant challenges.

TIMKEN Bearing 220RYL1621,Cylindrical Roller Radial Bearings - Four-Row. Four-row cylindrical bearings are almost exclusive to metals industry and carry heavy radial loads in steel, aluminum and other metal rolling mills.

Size Range: 145 mm to 1040 mm Bore.

Design Attributes
Design offers very high radial load capacity. No thrust capacity.
Straight and tapered bores available.
Inner races are interchangeable with outer assemblies.
Applications
Back-up rolls
Work rolls
Cement crushing
The Right Bearing For Long Product Mills

TIMKEN Bearing 220RYL1621,Cylindrical Roller Radial Bearings - Four-Row. Timken's new four-row cylindrical roller bearing gives mill operators the performance they need to help maximize operational uptime. The optimized internal geometry of the RYL design reduces the risk of damage during mounting which can extend the service life of the bearing. As a pioneering steel maker and leading bearing supplier to riling mills, Timken serves this industry with knowledge, technology, dedicate action, quality and the services to back them.

Optimized for use in long product mills, the RYL type four-row cylindrical bearing can increase performance and reduce total production costs. Timken engineers built on the success of an earlier RY design by improving ease of installation and durability.

The most visible difference is the change in cage material from brass to machined steel to help minimize wear. The high durability of the steel cage minimizes roller drop changes over the bearing life. For a mill operator with frequent roll changes, this feature combines with an inner ring chamfer to significantly reduce a common risk of be airing failure following collision damage between the inner ring and outer assembly during roll change operations.

Timken's RYL type four-row cylindrical roller bearing is a premium product, from a leading bearing manufacturer with unparalleled expertise in the metal industry.
