TIMKEN Bearing 22217KEJW33C2

Spherical bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present.
Material: Bearing steels
In Stock:

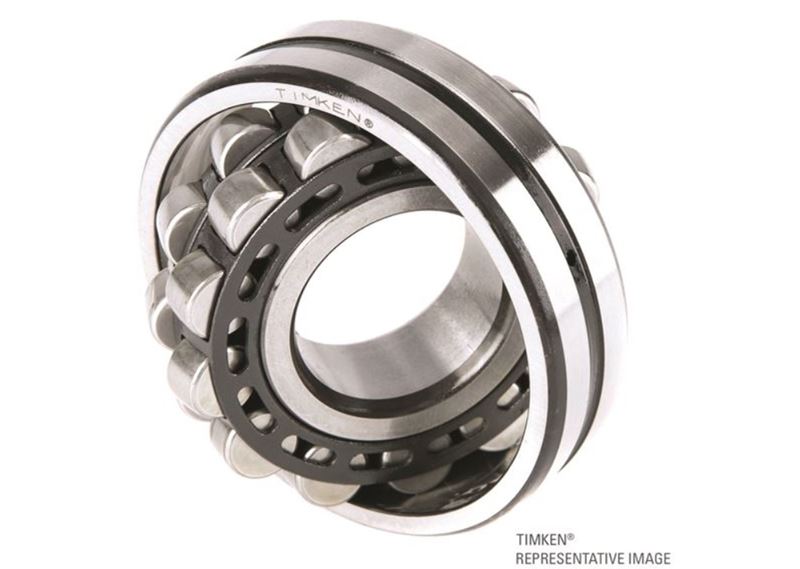

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing 22217KEJW33C2

TIMKEN Bearing 22217KEJW33C2

Specifications

UPC Code

087796231238

Design Unit

Metric

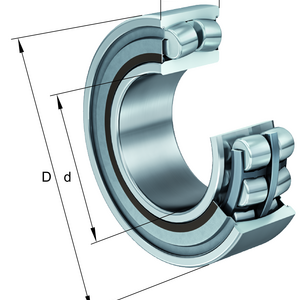

d – Bore

85 mm

Bore_Taper

1/12

Cage Type

EJ

Cage Material

Steel

Superseded Part

22217KCJW33C2

Dimensions

D – Outer Diameter

150 mm5.9055 in

B” – Inner Ring Width

36 mm1.4173 in

B – Outer Ring Width

36 mm1.4173 in

Abutment and Fillet Dimensions

R – Inner Ring “To Clear” Radius1

2 mm0.080 in

r – Outer Ring “To Clear” Radius2

2 mm0.08 in

da – Inner Ring Backing Diameter

101.000 mm4.000 in

Da – Outer Ring Backing Diameter

139.000 mm5.500 in

Basic Load Ratings

C0 – Static Radial Rating

320000 N71900 lbf

C1(2) – Dynamic Radial Rating (Two-Rows)

297000 N66900 lbf

Factors

e – ISO Factor3

0.22

Y0 – ISO Factor4

3

Y1 – ISO Factor5

3.07

Y2 – ISO Factor6

4.57

Reference Thermal Speed Rating (Grease)

3400 rpm

Reference Thermal Speed Rating (Oil)7

4200 rpm

Cg – Geometry Factor8

0.0595

Product description of TIMKEN Bearing 22217KEJW33C2

TIMKEN Bearing 22217KEJW33C2, It belongs to TIMKEN Bearing > Spherical Roller Bearings > Spherical Roller Bearings - Steel Cage.

and related type you may also like TIMKEN Bearing 22217KEJW33C3.

Misalignment. Contamination. High temperatures. Even extreme speeds or critical stresses can present extra challenges when managing high radial loads. Timken® spherical roller bearings can handle it all, with innovations designed to extend bearing life and boost reliability.

Timken® Spherical Roller Bearings with hardened steel cages deliver greater fatigue strength, increased wear-resistance and tougher protection against shock and acceleration. TIMKEN Bearing 22217KEJW33C2,Timken® Spherical Roller Bearings with brass cages provide extra strength and durability in the most unrelenting conditions, including extreme shock and vibration, high acceleration forces and minimal lubrication.

Cages (also referred to as rolling element retainers) serve several purposes in the proper operation of a rolling element bearing. Cages separate the rolling elements and prevent rolling element on rolling element contact and wear. Cages align the rolling elements on the inner ring to prevent rolling element sliding, skidding, and skewing to facilitate true rolling motion. For handling purposes, cages retain the rolling elements on the inner ring assembly to allow for bearing installation. In some instances, cages also improve flow of the lubricant to the bearing inner ring raceways. The following sections discuss the common types of cages used for spherical roller bearings. The basic design geometry, material, and manufacture are discussed for each cage type.

TIMKEN Bearing 22217KEJW33C2,Timken® EJ bearings incorporate a unique stamped-steel cage design as shown in next. The EJ design includes two independent cages, one for each row of rollers, which are assembled into an individual bearing. This feature allows each path of cage and rollers to operate independently, and prevents the cage from bending. This cage is guided on the inner ring and runs above pitch. Each cage is surface hardened (nitrided) to provide improved wear resistance as well as additional strength to allow the bearing to operate in even the most severe environment. Face slots have been designed for improved lubrication flow. This can result in a lower operating temperature and longer bearing life.
