TIMKEN Bearing 22224EJW33C4

Spherical bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present.
Material: Bearing steels
In Stock:

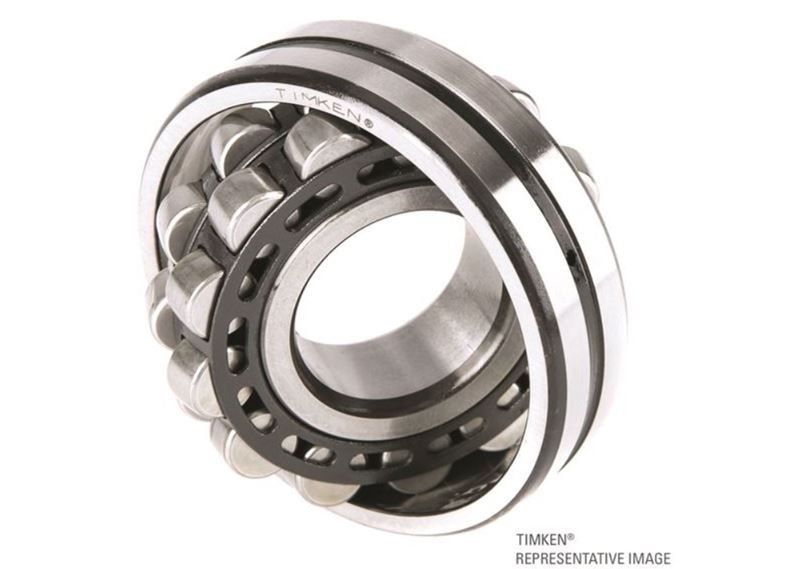

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing 22224EJW33C4

TIMKEN Bearing 22224EJW33C4

Specifications

UPC Code

087796025363

Design Unit

Metric

d – Bore

120 mm

Cage Type

EJ

Cage Material

Steel

Superseded Part

22224CJW33C4

Dimensions

D – Outer Diameter

215 mm8.4646 in

B” – Inner Ring Width

58 mm2.2835 in

B – Outer Ring Width

58 mm2.2835 in

Abutment and Fillet Dimensions

R – Inner Ring “To Clear” Radius1

2 mm0.080 in

r – Outer Ring “To Clear” Radius2

2 mm0.08 in

da – Inner Ring Backing Diameter

143 mm5.6000 in

Da – Outer Ring Backing Diameter

196.000 mm7.700 in

Basic Load Ratings

C0 – Static Radial Rating

772000 N174000 lbf

C1(2) – Dynamic Radial Rating (Two-Rows)

647000 N145000 lbf

Factors

e – ISO Factor3

0.25

Y0 – ISO Factor4

2.64

Y1 – ISO Factor5

2.7

Y2 – ISO Factor6

4.02

Reference Thermal Speed Rating (Grease)

2600 rpm

Reference Thermal Speed Rating (Oil)7

3200 rpm

Cg – Geometry Factor8

0.0778

Product description of TIMKEN Bearing 22224EJW33C4

TIMKEN Bearing 22224EJW33C4, It belongs to TIMKEN Bearing > Spherical Roller Bearings > Spherical Roller Bearings - Steel Cage.

and related type you may also like TIMKEN Bearing 22224EJW33W22C2.

Misalignment. Contamination. High temperatures. Even extreme speeds or critical stresses can present extra challenges when managing high radial loads. Timken® spherical roller bearings can handle it all, with innovations designed to extend bearing life and boost reliability.

Timken® Spherical Roller Bearings with hardened steel cages deliver greater fatigue strength, increased wear-resistance and tougher protection against shock and acceleration. TIMKEN Bearing 22224EJW33C4,Timken® Spherical Roller Bearings with brass cages provide extra strength and durability in the most unrelenting conditions, including extreme shock and vibration, high acceleration forces and minimal lubrication.

Cages (also referred to as rolling element retainers) serve several purposes in the proper operation of a rolling element bearing. Cages separate the rolling elements and prevent rolling element on rolling element contact and wear. Cages align the rolling elements on the inner ring to prevent rolling element sliding, skidding, and skewing to facilitate true rolling motion. For handling purposes, cages retain the rolling elements on the inner ring assembly to allow for bearing installation. In some instances, cages also improve flow of the lubricant to the bearing inner ring raceways. The following sections discuss the common types of cages used for spherical roller bearings. The basic design geometry, material, and manufacture are discussed for each cage type.

TIMKEN Bearing 22224EJW33C4,Timken® EJ bearings incorporate a unique stamped-steel cage design as shown in next. The EJ design includes two independent cages, one for each row of rollers, which are assembled into an individual bearing. This feature allows each path of cage and rollers to operate independently, and prevents the cage from bending. This cage is guided on the inner ring and runs above pitch. Each cage is surface hardened (nitrided) to provide improved wear resistance as well as additional strength to allow the bearing to operate in even the most severe environment. Face slots have been designed for improved lubrication flow. This can result in a lower operating temperature and longer bearing life.
