TIMKEN 60TP127 | Thrust Cylindrical Roller Bearing-Type TP

Specifications of TIMKEN Bearing 60TP127

Specifications

d – Bore Diameter	152.4 mm
Bearing Type	Thrust Cylindrical Roller Bearings – TP
Weight	17.7 Kg39.4 lb

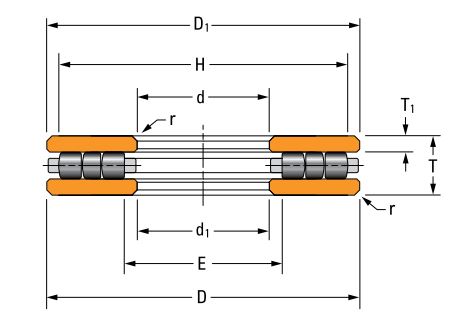

Dimensions

D – Bearing O.D.	304.8 mm12 in
T – Bearing Width	50.8 mm2 in
T1 – Bearing Width	14.29 mm0.562 in
d1 – Large Bore I.D.	153.99 mm6.062 in
D1 – Small Diameter O.D.	303.31 mm11.938 in
E – Shoulder Diameter – Housing	169.9 mm6.69 in
H – Shoulder Diameter – Shaft	287.3 mm11.31 in
r – Fillet Chamfer	3.2 mm0.12 in

Basic Load Ratings

Static Load Rating	5600000 N1252500 lbf
Dynamic Load Rating	1100000 N240600 lbf
Limiting Speed	950 rpm

Product description of TIMKEN Bearing 60TP127

TIMKEN Bearing 60TP127, Thrust Cylindrical Roller Bearing-Type TP. It belongs toTIMKEN Bearing > Thrust Bearings > Thrust Cylindrical Roller Bearing-Type TP. When axial loads combine with high speeds, heavy loads or other challenging conditions, Timken thrust bearings deliver optimum performance. We offer a comprehensive range of thrust bearings in standard as well as custom designs, meeting stringent specifications required for nearly any application.

Type DTVL thrust ball bearings have an upper and lower complement of angular contact balls and three race elements. Timken designed this type with the capability to carry a thrust load in one direction, comparable to the TVL type, and a lighter thrust load in the opposite direction.

TIMKEN Bearing 60TP127, Thrust Cylindrical Roller Bearing-Type TP, Which Designed to operate under heavy loads at moderate speed, standard versions of type TS bearings can be operated at peripheral speeds of up to 3,000 feet per minute. Special design features are available for both the bearing and mounting, permitting even higher rotational speeds for this bearing type.

Size range:
50.8 mm to 609.6 mm (2 in. to 24 in.)

Design Attributes:
Includes two flat-hardened, ground- steel washers with a cage retainer holding one or more controlled contour rollers in each pocket. The longer rollers are placed in alternate positions in adjacent pockets.
Overlapping roller paths prevent “grooving” of races and prolong bearing life.
Minor radial displacement of the races does not affect the operation of a TP bearing, resulting in manufacturing economies and easy installation.
Simple design is the most economical to purchase and install.

Applications:
Cone crushers
Crane hooks
Extruders
Gearboxes
Oil well swivels
Power drives
Pulverizers
Pumps
