TIMKEN Bearing 6211-2RZ

Timken’s deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality.
d= 55 mm, D= 100 mm, B= 21 mm, Mass= 1.5 mm
Material: Bearing steels
In Stock:

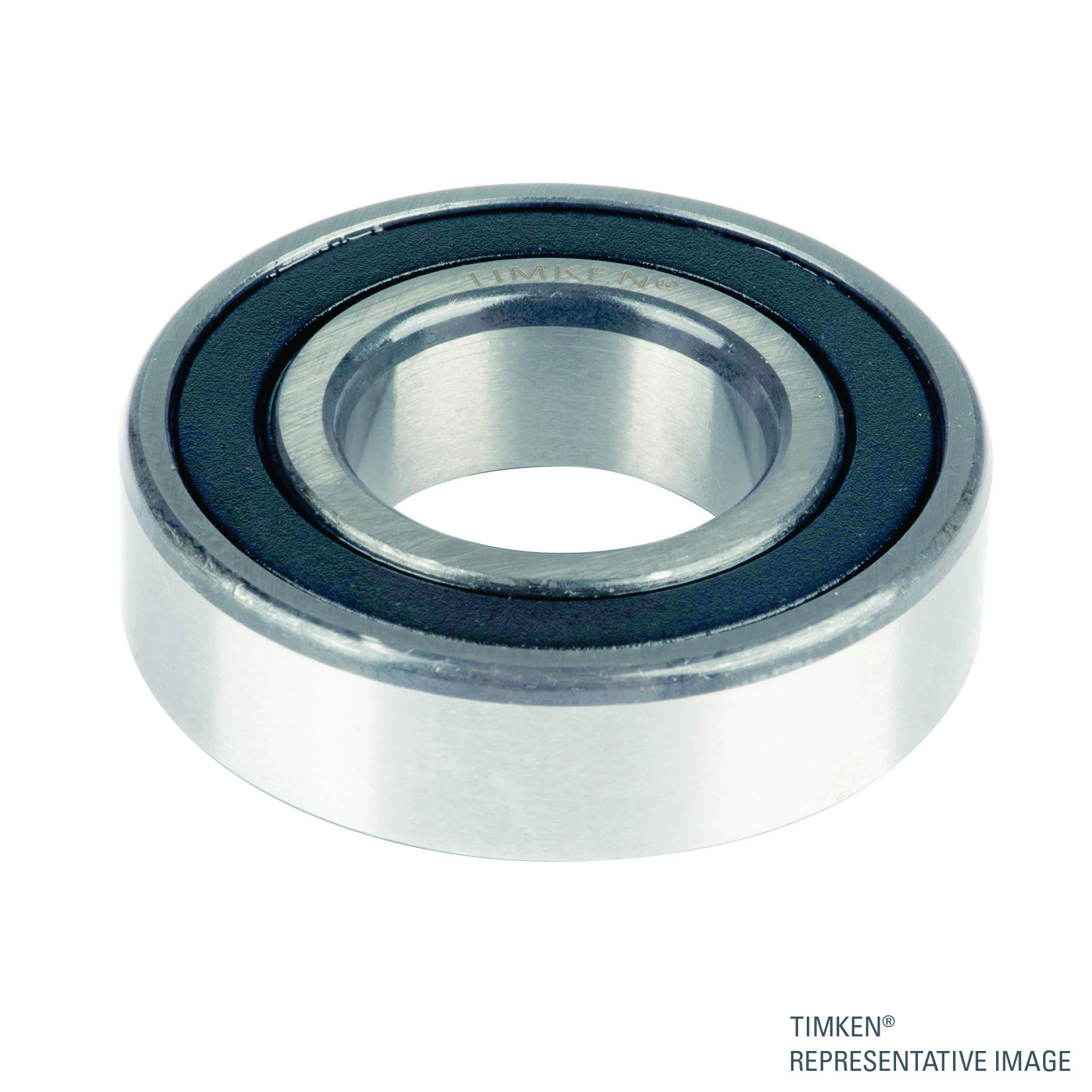

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing 6211-2RZ

TIMKEN Bearing 6211-2RZ

Specifications

Clearance

C0 (Normal)

Bore Size d

55 mm

Features

Non-Contact Seals

Bearing Type

Standard DGBB

Weight

0.61 Kg

Dimensions

Outside Diameter D

100 mm

Outside Ring Width B

21 mm

Radius Rs min

1.5 mm

Basic Load Ratings

Cr – Dynamic Load Rating

43400 N

C0r – Static Load Rating

29200 N

Factors

Grease Reference Speed

7000 rpm

Oil Reference Speed

10000 rpm

Product description of TIMKEN Bearing 6211-2RZ

TIMKEN Bearing 6211-2RZ belongs to Deep Groove Ball Bearings (6000, 6200, 6300, 6400),

Deep Groove Ball Bearings are versatile, self-retaining bearings. These bearings, which are of simple design, robust in operation and easy to maintain, are available in single row and double row designs and in open and sealed variants.

Single row deep groove ball bearings are the most frequently used type of rolling bearing. They are produced in numerous sizes and designs and are particularly economical. Due to their very low frictional torque, open bearings are suitable for high and very high speeds. Bearing designs with gap seals are suitable for high speeds.

Single row deep groove ball bearings are only suitable for compensating static misalignment s to a very limited extent. As a result, the bearing positions must be well aligned.

Double row deep groove ball bearings correspond in their structure to a pair of single row deep groove ball bearings but have two raceway grooves, each with one row of balls. Due to the larger number of rolling elements, they can be subjected to higher loads than single row deep groove ball bearings.

TIMKEN Bearing 6211-2RZ,Double row bearings are used where the load carrying capacity of single row deep groove ball bearings is not sufficient. Since the bearings can also support loads due to tilting, they are suitable for particularly short shafts that are supported by only one bearing.

TIMKEN Bearing 6211-2RZ, Our deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality. Our portfolio includes standard, thin section, narrow, wide and miniature and extra-small deep groove ball bearings that span 3 mm to 400 mm bore sizes. The extended product line includes a complete offering of open, shields, seals and snap ring combinations.

Easy Interchange

Designed as metric bearings, our deep groove ball bearings follow ISO standards and are dimensionally interchangeable with competitor metric products.

Brass Cage Availability

Deep groove ball bearings with brass cages (available in select sizes) can deliver extra strength and durability in the most unrelenting conditions: extreme shock loads, high vibrations and high forces due to acceleration.

Quiet Running for Electric Motor Quality

Deep groove ball bearings are frequently used in electric motor applications to minimize vibration and noise. To meet our long-standing electric motor quality guidelines we designed in:
Super finishing on raceways to reduce friction
Preferred clearance designation (C3)
Premium grease for high performance, low torque and less noise

TIMKEN Bearing 6211-2RZ, Timken deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled internal geometries, our premium design helps ensure consistent quality.
