Specifications of TIMKEN Bearing 627
TIMKEN Bearing 627
Category: TIMKEN Bearing > Ball Bearing > Deep Groove Ball Bearings > Miniature Ball Bearings (600, 610, 620, 630)
Timken’s deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality.
d= 7 mm, D= 22 mm, B= 7 mm, Mass= 0.3 mm
Material: Bearing steels
EMAIL: [email protected]
In Stock:

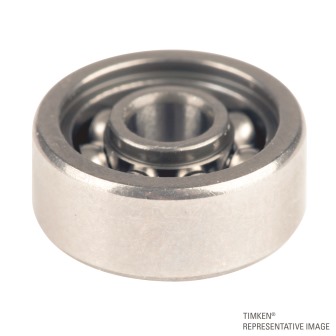

Photo may not represent actual item. See the technical specification for details.
Product description of TIMKEN Bearing 627
TIMKEN Bearing 627,it belongs to Category: TIMKEN Bearing > Ball Bearing > Deep Groove Ball Bearings > Miniature Ball Bearings (600, 610, 620, 630)
A wide variety of bearing types and design variations are available to meet the requirements of virtually all precision instrument applications. Bearing types include radial retainer, pivot, thrust, high speed radial, angular contact and full ball complement. Many selections also are available in both inch and metric dimensions.
Design Attributes
Extended inner rings and flanged outer rings to facilitate mounting.
Shields and seals for contamination protection.
Radial play and contact angle variations to suit application loading and deflection requirements
Various ball retainer styles and materials for optimum bearing performance.
Factory lubrication from a stock of several hundred lubricants.
Tolerance levels to exact application requirements.
Ring and ball selection choices include AISI 440C stainless steel, SAE 52100 chrome steel, beryllium copper and ceramics.
Performance testing for noise and friction torque specifications available.
TIMKEN Bearing 627, Applications
Medical and industrial hand pieces
Flow meters
Fuel controls
Gyros, synchros and servos
Motors
Cryogenic coolers
Pulmonary assist devices
TIMKEN Bearing 627, Miniature Ball bearings are sometimes referred to as instrument bearings or micro bearings which are very small machined components that include an outer ring, inner ring, balls, retainers, shields and snap rings.
Technical capabilities to realize sub-micron precision, development abilities to meet customer needs, creative power to create innovation. Using all of them, TIMEKN Micro Precision manufactures over several hundred miniature ball bearings and is applied to equipment and devices in a wide range of field.
