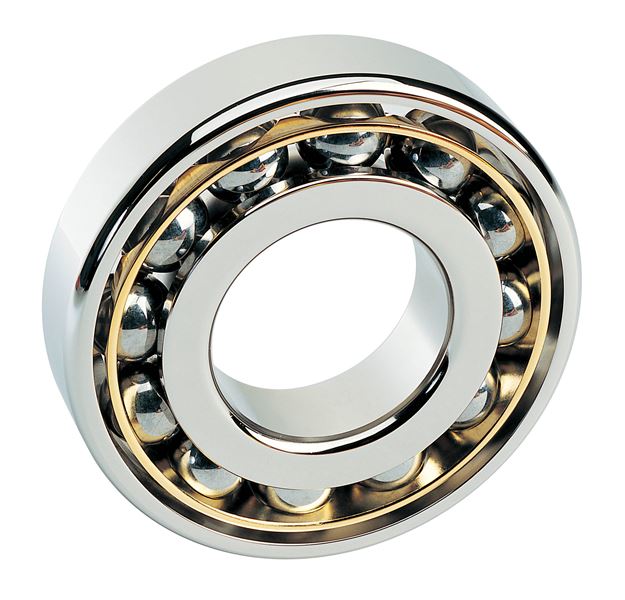

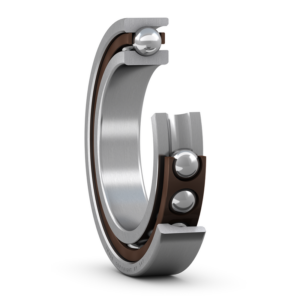

TIMKEN 7203W SU | Fafnir® Single Row Angular Contact Ball Bearings

Specifications of TIMKEN Bearing 7203W SU

Dimensions

d – Bore	17 mm
D – Outer Diameter	40 mm1.5748 in
Bearing Width	12 mm0.4727 in
Contact Angle	20 º

Basic Load Ratings

C0 – Static Radial Rating	6930 N1560 lbf
Ce – Dynamic Radial Rating¹	14200 N3200 lbf

Specifications

Ball Type	STEEL
Cage Type	Nylon Cage
Bearing Weight	0.068 Kg0.15 lb
Design Units	Metric

Abutment and Fillet Dimensions

R – Inner Ring “To Clear” Radius²	0.6 mm0.024 in
r – Outer Ring “To Clear” Radius³	0.6 mm0.024 in
da – Inner Ring Backing Diameter	23.410 mm0.9215 in
Da – Outer Ring Backing Diameter	33.500 mm1.319 in

Product description of TIMKEN Bearing 7203W SU

TIMKEN Bearing 7203W SU, It belongs to TIMKEN Bearing > Ball Bearing > Angular Contact Ball Bearings > Fafnir® Single Row Angular Contact Ball Bearings (7200, 7300, 7400).Timken® Angular Contact Ball Bearings are designed to handle both radial and axial loading, and are specifically engineered for use in high-speed and high precision applications.

TIMKEN Bearing 7203W SU,Fafnir® Single Row Angular Contact Ball Bearings (7200, 7300, 7400), Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both directions.

Size Range
Single-row: 10 mm – 150 mm (0.3937 in. – 5.9055 in.) bore
Double-row: 12 mm – 150 mm (0.4724 in. – 5.9055 in.) bore

Design Attributes
Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads.
Expanded options include special lubricants, cage materials, preload and coatings for additional corrosion resistance.

TIMKEN Bearing 7203W SU,Fafnir® Single Row Angular Contact Ball Bearings (7200, 7300, 7400)are engineered for use in high-speed, high precision applications for:
Agriculture
Chemical
General industry
Utilities

Single-row angular contact ball bearings are designed to handle radial and axial loads simultaneously. However, they can only accommodate axial loads in one direction. As a result, most single-row angular contact ball bearings are mounted in pairs.Single-row angular contact ball bearings are available in either standard or universally matched designs.

In angular contact ball bearing design, the forces are transmitted from one raceway to the other along a given contact angle. This angle is defined as the angle between the line of action of forces and a radial plane (Fig. 3). The result is a larger contact angle increasing the bearing's axial load capability.

TIMKEN Bearing 7203W SU,Fafnir® Single Row Angular Contact Ball Bearings (7200, 7300, 7400) CONTACT ANGLE The contact angle of an angular contact ball bearing is the angle between a line through the ball center perpendicular to the bearing axis and a line through the two points where the ball contacts the races when the bearing axial play is removed. Timken single-row angular contact ball bearings of series 7200and 7300 have a contact angle of 40 degrees and Timken double-row angular contact ball bearings of series 3200 and 3300 have a contact angle of 30 degrees which allow them to accommodate high axial loads.
