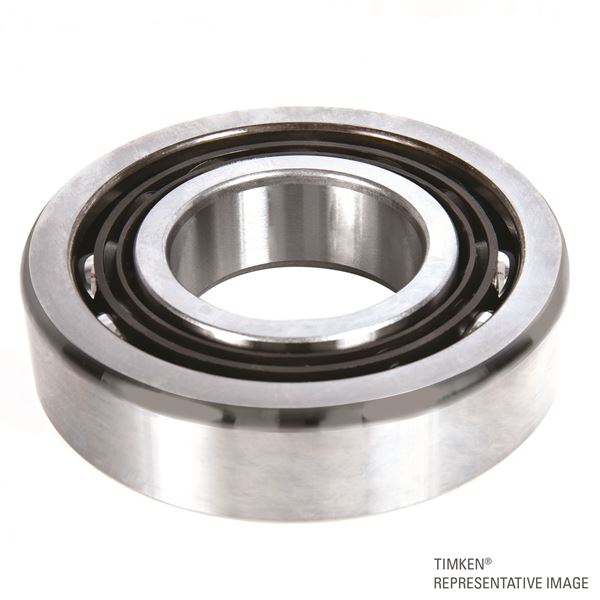

TIMKEN 7212 BTN1/CN | Timken® Single Row Angular Contact Ball Bearings

Specifications of TIMKEN Bearing 7212 BTN1/CN

Specifications

Design Units	Metric
d – Bore	60 mm
Ball Type	STEEL
Cage Type	Molded
Cage Material	Polyamide
Bearing Weight	0.78 Kg1.72 lb
R – Inner Ring “Touch” Radius	0.6
r – Outer Ring “Touch” Radius	0.6
Features	Open

Dimensions

D – Outer Diameter	110 mm4.3307 in
Bearing Width	22 mm0.8661 in
Contact Angle	40 º

Basic Load Ratings

C0 – Static Radial Rating	44500 N10002 lbf
C1 ISO – Dynamic Radial Rating	56000 N12587 lbf

Factors

Limiting Speed (Grease)	5700 rpm
Limiting Speed (Oil)	7600 rpm

Abutment and Fillet Dimensions

R – Inner Ring “To Clear” Radius¹	1 mm0.039 in
r – Outer Ring “To Clear” Radius²	1 mm0.039 in
da – Inner Ring Backing Diameter	68.5 mm2.697 in
Da – Outer Ring Backing Diameter	101.5 mm3.996 in

Product description of TIMKEN Bearing 7212 BTN1/CN

TIMKEN Bearing 7212 BTN1/CN, It belongs toTIMKEN Bearing > Ball Bearing > Angular Contact Ball Bearings > Timken® Single Row Angular Contact Ball Bearings (7200, 7300). and related type you may also like TIMKEN Bearing 7213 BJ Timken single row angular contact ball bearings can accommodate axial loads in one direction only. This type of bearing is typically adjusted against a second bearing. Their bearing rings have an upper and a lower shoulder and are non-separable.Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis

TIMKEN Bearing 7212 BTN1/CN, Single row angular contact ball bearings are particularly suitable where:
bearing arrangements must support combined loads
moderate to high axial loads are present on one side
rigid axial guidance is required
the bearing arrangement must be axially clearance-free or preload-ed
high speeds are required under higher radial and axial loads.
Timken® Angular Contact Ball Bearings are designed to handle both radial and axial loading, and are specifically engineered for use in high-speed and high precision applications.

TIMKEN Bearing 7212 BTN1/CN,Timken® Single Row Angular Contact Ball Bearings (7200, 7300), Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both directions.

Size Range
Single-row: 10 mm – 150 mm (0.3937 in. – 5.9055 in.) bore
Double-row: 12 mm – 150 mm (0.4724 in. – 5.9055 in.) bore

Design Attributes
Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads.
Expanded options include special lubricants, cage materials, preload and coatings for additional corrosion resistance.

TIMKEN Bearing 7212 BTN1/CN,Timken® Single Row Angular Contact Ball Bearings (7200, 7300)are engineered for use in high-speed, high precision applications for:
Agriculture
Chemical
General industry
Utilities

Single-row angular contact ball bearings are designed to handle radial and axial loads simultaneously. However, they can only accommodate axial loads in one direction. As a result, most single-row angular contact ball bearings are mounted in pairs.Single-row angular contact ball bearings are available in either standard or universally matched designs.
