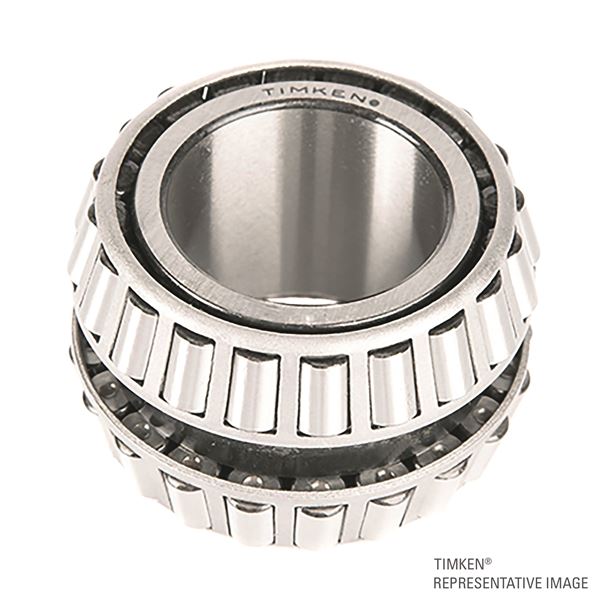

Specifications of TIMKEN Bearing EE135111DW
Specifications
Series |
135000 |
Cone Part Number |
EE135111DW |
Design Units |
Imperial |
Cage Type |
Stamped Steel |
C1 – Dynamic Radial Rating (1 million revolutions)1 |
196000 lbf873000 N |
C0 – Static Radial Rating |
375000 lbf1670000 N |
Abutment and Fillet Dimensions
R – Cone Backface “To Clear” Radius2 |
0.06 in1.5 mm |
da – Cone Frontface Backing Diameter |
11.69 in297 mm |
Ab – Cage-Cone Frontface Clearance |
0.03 in0.8 mm |
Basic Load Ratings
C90 – Dynamic Radial Rating (90 million revolutions)3 |
50900 lbf226000 N |
C1 – Dynamic Radial Rating (Two-Row, 1 million revolutions)4 |
342000 lbf1520000 N |
C90(2) – Dynamic Radial Rating (Two-Row, 90 million revolutions)5 |
88600 lbf394000 N |
Ca90 – Dynamic Thrust Rating (90 million revolutions)6 |
33200 lbf148000 N |
