TIMKEN Bearing JL724314-B

Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
Material: Bearing steels
In Stock:

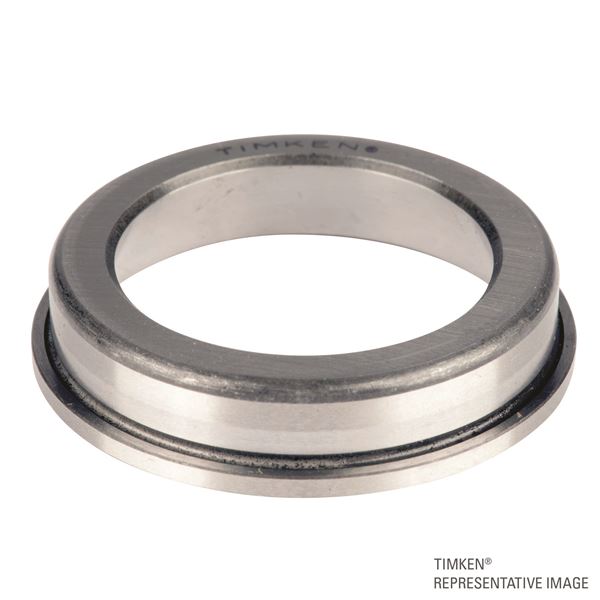

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing JL724314-B

TIMKEN Bearing JL724314-B

Specifications

Series

L724300

Cup Part Number

JL724314-B

Design Units

METRIC

Full Timken Part Number

L724300

Dimensions

D – Cup Outer Diameter

170 mm6.6929 in

D1 – Flange Outer Diameter

177.000 mm6.9685 in

C – Cup Width

19.05 mm0.75 in

C1 – Cup Flange Width

5.000 mm0.1969 in

Abutment and Fillet Dimensions

r – Cup Backface “To Clear” Radius1

3.3 mm0.130 in

Da – Cup Frontface Backing Diameter

164.59 mm6.48 in

Factors

K – Factor2

1.27

e – ISO Factor3

0.46

Y – ISO Factor4

1.31

Cg – Geometry Factor5

0.147

Product description of TIMKEN Bearing JL724314-B

Tapered Roller Bearings - Single Flanged Cups - Metric, TIMKEN Bearing JL724314-B,

The TSF type is a variation on the basic single-row bearing.

TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.

Size range:
ID 7.937 mm to 1270.000 mm (0.3125 in. to 50.0000 in.)
OD 31.991 mm to 1435.100 mm (1.2595 in. to 56.5000 in.)

Design Attributes of Tapered Roller Bearings - Single Flanged Cups - Metric, TIMKEN Bearing JL724314-B.

Cup is backed against flange face to allow housing to be through-bored.

Accurate alignment of housing bores.

Reduced machining costs.

Applications:
Machine tool spindles
Gear reduction units
Automotive transaxles
Transmissions

To help you get the most value from our products, Timken provides guidelines for the shelf life of grease-lubricated ball and roller bearings, components and assemblies. Shelf life information is based on Timken and industry test data and experience.

Demanding applications call for reliable solutions. Improve your equipment`s performance and reduce your downtime and maintenance costs by turning to Timken tapered roller bearings. When you purchase a Timken bearing, you`re investing in a product that`s designed with you in mind. Reliability. Expert craftsmanship, well-equipped production facilities and an ongoing investment in technology ensure our products are synonymous with quality and reliability. Our tapered roller bearings stand up to extreme situations, including high-corrosive, high-temperature, vacuum or low-lubrication environments. Versatility. Use Timken tapered roller bearings to help your equipment excel when it faces combined radial and thrust loads. Our bearings are uniquely designed to manage both types of loads on rotating shafts and in housings. Choice. From single- to double- to four-row configurations to thrust, choose from nearly 26,000 product combinations to find the right bearing for your application.
