| Series |
JP6000 |
| Cup Part Number |
JP6010-B |
| Design Units |
METRIC |
| Full Timken Part Number |
JP6000 |
| D – Cup Outer Diameter |
100 mm3.937 in |
| D1 – Flange Outer Diameter |
105.000 mm4.1339 in |
| C – Cup Width |
15.500 mm0.6102 in |
| C1 – Cup Flange Width |
3.000 mm0.1181 in |

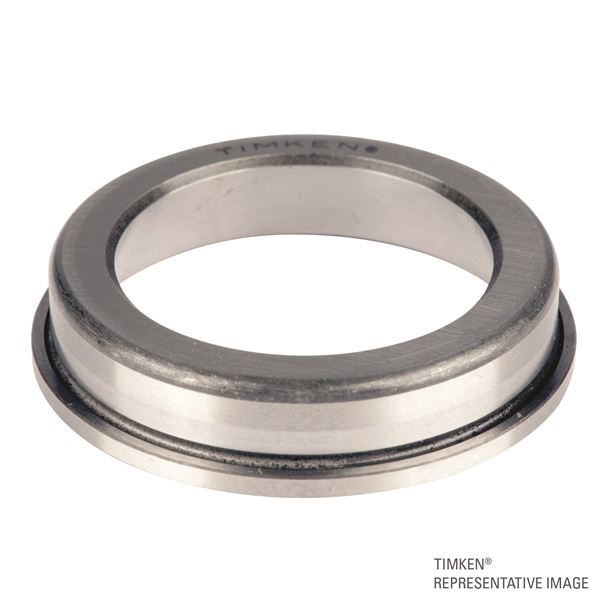

Tapered Roller Bearings - Single Flanged Cups - Metric, TIMKEN Bearing JP6010-B,
The TSF type is a variation on the basic single-row bearing.
TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
Size range:
ID 7.937 mm to 1270.000 mm
(0.3125 in. to 50.0000 in.)
OD 31.991 mm to 1435.100 mm
(1.2595 in. to 56.5000 in.)
Design Attributes of Tapered Roller Bearings - Single Flanged Cups - Metric, TIMKEN Bearing JP6010-B.
Cup is backed against flange face to allow housing to be through-bored.
Accurate alignment of housing bores.
Reduced machining costs.
Applications:
Machine tool spindles
Gear reduction units
Automotive transaxles
Transmissions
To help you get the most value from our products, Timken provides guidelines for the shelf life of grease-lubricated ball and roller bearings, components and assemblies. Shelf life information is based on Timken and industry test data and experience.
Demanding applications call for reliable solutions. Improve your equipment`s performance and reduce your downtime and maintenance costs by turning to Timken tapered roller bearings. When you purchase a Timken bearing, you`re investing in a product that`s designed with you in mind. Reliability. Expert craftsmanship, well-equipped production facilities and an ongoing investment in technology ensure our products are synonymous with quality and reliability. Our tapered roller bearings stand up to extreme situations, including high-corrosive, high-temperature, vacuum or low-lubrication environments. Versatility. Use Timken tapered roller bearings to help your equipment excel when it faces combined radial and thrust loads. Our bearings are uniquely designed to manage both types of loads on rotating shafts and in housings. Choice. From single- to double- to four-row configurations to thrust, choose from nearly 26,000 product combinations to find the right bearing for your application.
You may also like TIMKEN Bearing JP7010-B
