TIMKEN Bearing M667948H - M667911D

The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Material: Bearing steels
In Stock:

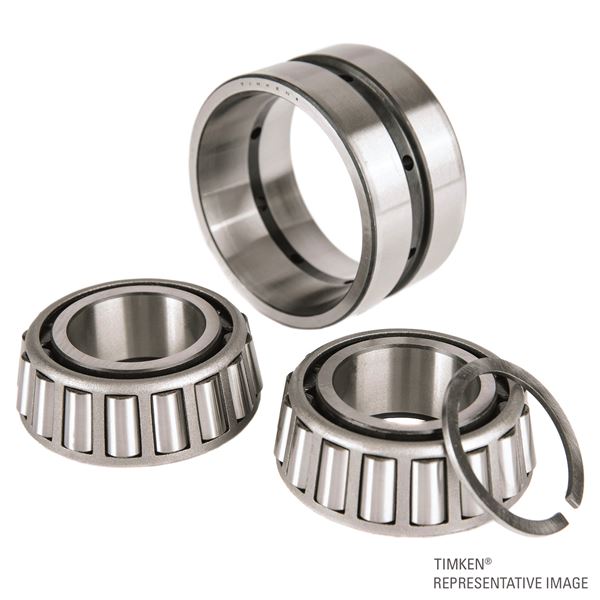

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing M667948H - M667911D

TIMKEN Bearing M667948H - M667911D

Specifications

Series

M667900

Cone Part Number

M667948H

Cup Part Number

M667911D

Design Unit

Inch

Bearing Weight

252.81 lb114.675 Kg

Cage Material

Stamped Steel

Dimensions

d – Bore

16.1250 in409.575 mm

D – Cup Outer Diameter

21.5 in546.1 mm

B – Cone Width

3.4375 in87.313 mm

C – Double Cup Width

5.8125 in147.638 mm

T – Bearing Width across Cones

7.3124 in185.735 mm

Abutment and Fillet Dimensions

R – Cone Backface “To Clear” Radius1

0.25 in6.4 mm

r – Cup Backface “To Clear” Radius2

0.06 in1.5 mm

db – Cone Backface Backing Diameter

17.32 in440 mm

Da – Cup Frontface Backing Diameter

20.91 in531.10 mm

Aa – Cage-Cone Backface Clearance

0.06 in1.5 mm

a – Effective Center Location3

0.69 in17.5 mm

Basic Load Ratings

C90 – Dynamic Radial Rating (One-Row, 90 million revolutions)4

104000 lbf462000 N

C1 – Dynamic Radial Rating (Two-Row, 1 million revolutions)5

697000 lbf3100000 N

C90(2) – Dynamic Radial Rating (Two-Row, 90 million revolutions)6

181000 lbf804000 N

Ca90 – Dynamic Thrust Rating (90 million revolutions)7

74200 lbf330000 N

Factors

K – Factor8

1.4

e – ISO Factor9

0.42

Y1 – ISO Factor10

1.62

Y2 – ISO Factor11

2.41

Cg – Geometry Factor12

0.221

Product description of TIMKEN Bearing M667948H - M667911D

TIMKEN Bearing M667948H - M667911D,Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial. Tapered Roller Bearings TDI (Tapered Double Inner) Imperial. Timken® tapered roller bearing assemblies are precisely designed to manage both radial and axial loads, even in the most unforgiving conditions.Double- or two-row Timken® tapered roller bearings feature double cups and two single cones. They are available in a variety of configurations for general industrial and automotive applications.

TDO (Two-Row Double-Outer Race)

The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.

Size range:
ID 25.400 mm to 1200.150 mm (1.0000 in. to 47.2500 in.)
OD 30.480 mm to 2460.000 mm (1.2000 in. to 96.8504 in.)

TIMKEN Bearing M667948H - M667911DTapered Roller Bearings - TDO (Tapered Double Outer) Imperial. Design Attributes:
Double cup and two single cones, with or without a spacer.
When spacers are used, bearing is furnished as a preset, matched assembly.
Cup features groove and lubrication holes in the OD.
Spacers available with or without lubricant grooves and holes.

Applications:
Heavy-duty gear drives
Various industrial configurations

TIMKEN Bearing M667948H - M667911DTapered Roller Bearings - TDO (Tapered Double Outer) Imperial. A tapered roller bearing assembly includes: an outer race that includes first and second outer race side raceway surfaces; an inner shaft that is inserted into the outer race, and includes a small diameter portion at an axial end thereof, a first inner race side raceway surface which has a diameter larger than that of the small diameter portion, and an intermediate cylindrical surface which is formed between the small diameter portion and the first inner race side raceway surface and has substantially the same diameter as that of the first inner race side raceway surface; an inner race fitted to the small diameter portion and including a second inner race side raceway surface; a plurality of tapered rollers interposed between the first outer race side raceway surface and the first inner race side raceway surface and between the second outer race side raceway surface and the second inner race side raceway surface; and a pulser ring fitted to the intermediate cylindrical surface.
