TIMKEN Bearing NCF18/560V

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:

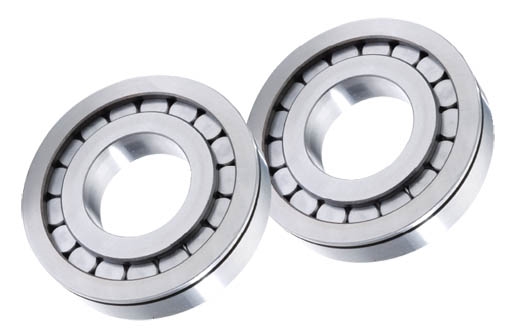

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF18/560V

TIMKEN Bearing NCF18/560V

Specifications

Bore d

560 mm

Static Load Rating Co

2460000 N554000 lbf

Dynamic Load Rating C11

1130000 N255000 lbf

Dimension S2

4.10 mm0.161 in

Geometry Factor Cg3

0.2560

Thermal Speed Ratings – Oil

230 rpm

Thermal Speed Ratings – Grease

190 rpm

Weight

39.1 Kg86.3 lb

Bearing Dimensions

O.D. D

680 mm26.7717 in

Width B

56 mm2.2047 in

DUR/DOR F/E

654.7 mm25.7756 in

Mounting Data

Chamfer rsmin

3.0 mm0.12 in

Chamfer r1smin4

3 mm0.120 in

Backing Shaft Diameter ds

590.7 mm23.2600 in

Backing Housing Diameter Ds

656.2 mm25.8400 in
