TIMKEN Bearing NCF18/710V

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:

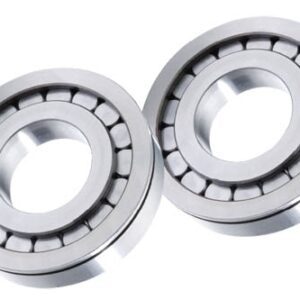

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF18/710V

TIMKEN Bearing NCF18/710V

Specifications

Bore d

710 mm

Static Load Rating Co

3920000 N882000 lbf

Dynamic Load Rating C11

1740000 N390000 lbf

Dimension S2

8.00 mm0.315 in

Geometry Factor Cg3

0.3090

Thermal Speed Ratings – Oil

170 rpm

Thermal Speed Ratings – Grease

150 rpm

Weight

91.5 Kg201.940 lb

Bearing Dimensions

O.D. D

870 mm34.252 in

Width B

74 mm2.9134 in

DUR/DOR F/E

830.7 mm32.7047 in

Mounting Data

Chamfer rsmin

4 mm0.16 in

Chamfer r1smin4

4 mm0.160 in

Backing Shaft Diameter ds

750.7 mm29.5600 in

Backing Housing Diameter Ds

832.7 mm32.7800 in
