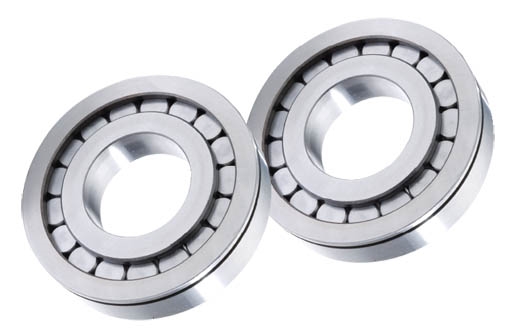

TIMKEN Bearing NCF1892V

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:
Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF1892V

TIMKEN Bearing NCF1892V

Specifications

Bore d

460 mm

Static Load Rating Co

2040000 N458000 lbf

Dynamic Load Rating C11

1030000 N232000 lbf

Dimension S2

4.50 mm0.177 in

Geometry Factor Cg3

0.2240

Thermal Speed Ratings – Oil

290 rpm

Thermal Speed Ratings – Grease

250 rpm

Weight

33.1 Kg73.000 lb

Bearing Dimensions

O.D. D

580 mm22.8346 in

Width B

56 mm2.2047 in

DUR/DOR F/E

552.6 mm21.7559 in

Mounting Data

Chamfer rsmin

3.0 mm0.12 in

Chamfer r1smin4

3 mm0.120 in

Backing Shaft Diameter ds

488.6 mm19.2400 in

Backing Housing Diameter Ds

553.6 mm21.8000 in
